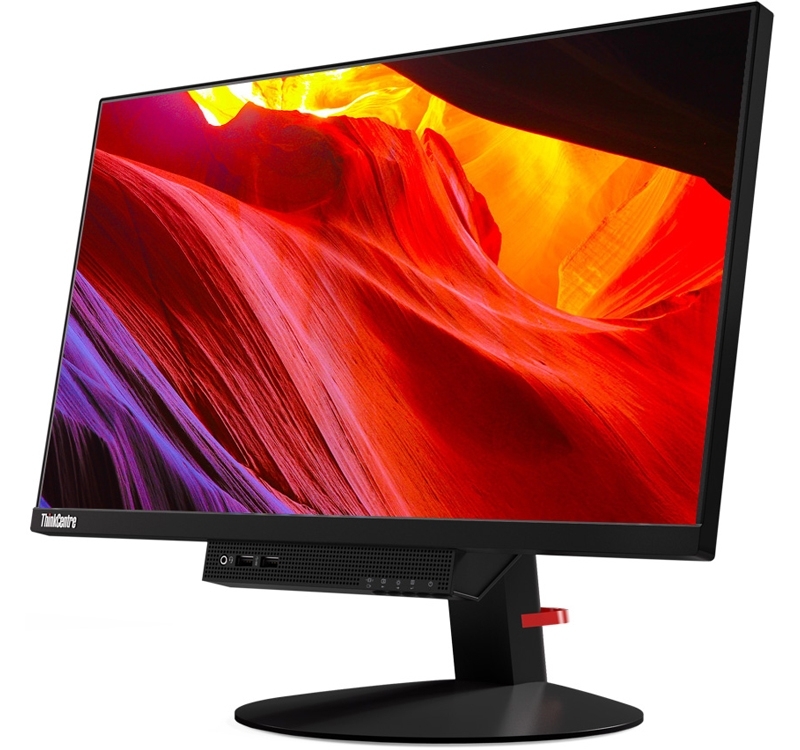

Lenovo Thinkcentre Tiny-in-one 22 - 21.5", 1920x1080 Anti-glare, Display Port, Speaker, Tilt, Swivel
QUICK OVERVIEW
Following in the footsteps of the industry-changing first-generation ThinkCentre Tiny-in-One (TIO), the evolution of the unique form factor continues. Built to make refreshes and upgrades effortless for large enterprise and configurable with all ThinkCentre compact desktops including the second- and third-generation Tiny PCs, ThinkCentre Chromebox and ThinkCentre Thin Clients, you can build your own All in One! The 22" and 24" modular All-in-One come with a sleek borderless design and integrated speaker. Improved one-step installation saves on IT efforts while still keeping the flexibility for Enterprise. New Plug & Play for Enterprise – one-step, no-tool setup. The modular design means that each component can be easily replaced on its own schedule, yielding the lowest TCO of any 21.5" commercial AIO. Fits anywhere with VESA-compatible mount. Space saving via industry-leading borderless design – TIO22 can fit in a 20" AIO Space thanks to its 21.5" industry-leading borderless design. Borderless design also creates a sleek, clean look. Refresh DT/monitor separately – enjoy a Full AIO experience with Lenovo Tiny PC. However, without Tiny, TIO can work as standalone monitor that is compatible with all brands NB and DT.
Part Number: 10LKPAR6AU
EPEAT: Gold
Max Operating Humidity: 80%
Min Operating Humidity: 8%
Max Operating Temperature: 40C
Min Operating Temperature: 0C
Other Information: Microsoft Windows Vista Microsoft Windows 7 Microsoft
Windows 8, 8.1 Microsoft Windows 10
Aspect Ratio: 16:9
Brightness: 250 cd/m2 typical
Max Colors Built in Screen: 16.7 million
Connector: 3in1+DP
Contrast Ratio: 1000:1
Display Type: FHD Wide IPS
Ergonomics: EPEAT Gold
Horizontal Viewing Angle: 178 degrees
Maximum Resolution: 1920x1080
Case Color: Black
Native Resolution: 1920x1080
Preset Display Modes: 25
User Programmable Modes: 25
Power Supply Type: Internal
Refresh Time: 14Milliseconds
Screen Illumination: LED Backlight
Viewable Image Size Inches: 21.5
Viewable Image Height US: 10.54in
Viewable Image Height Metric: 267.79mm
Viewable Image Width US: 18.74in
Viewable Image Width Metric: 476.06mm
Stand: Lift Tilt Swivel
Swivel: 45 degrees
Tilt: -5 to 35 degrees
Recommended Resolution: 1920 x 1080
Vertical Viewing Angle: 178 degrees
Input: DisplayPort/USB 3.0/power (undetachable 3-in-1 cable)
Headphone/microphone combo jack USB 3.0 upstream (Type B) DisplayPort 2
x USB 3.0 downstream
Depth: 251.4mm
Depth (US): 9.9in
Height: 466.07mm
Height (US): 18.35in
Width: 489.06mm
Width (US): 19.25in
Warranty Period: Three Year
Warranty Type: Customer Carry-in or Mail-in Rapid Replacement Service
| Audio | |
|---|---|
| Speakers: | Yes |
| Built-in Devices | |
|---|---|
| Built-in Devices: | Speaker |
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Part Number: | 10LKPAR6AU |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Product Line: | ThinkCentre |
| Product Model: | Tiny-in-One 22 |
| Product Name: | ThinkCentre Tiny-in-One 22 |
| Product Type: | LCD Monitor |
| Interfaces/Ports | |
|---|---|
| DisplayPort: | Yes |
| USB: | Yes |
| Miscellaneous | |
|---|---|
| Environmentally Friendly: | Yes |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Depth: | 251.5 mm |
| Height: | 466.1 mm |
| VESA Mount Compatible: | Yes |
| Width: | 489 mm |
| Technical Information | |
|---|---|
| Aspect Ratio: | 16:9 |
| Backlight Technology: | LED |
| Number of Screens: | 1 |
| Response Time: | 14 ms |
| Screen Mode: | Full HD |
| Screen Size: | 54.6 cm (21.5") |
| Video | |
|---|---|
| Brightness: | 250 cd/m² |
| Colour Support: | 16.7 Million Colours |
| Contrast Ratio: | 1,000:1 |
| Maximum Resolution: | 1920 x 1080 |
