Lenovo Thinkserver Raid 520i Pcie Adapter 4xc0g88840
Abstract
The ThinkServer RAID 520i Adapter is an entry-level 12 Gb SAS/SATA internal RAID adapter that offers a cost-effective RAID solution for small to medium business customers.
This product guide provides essential presales information to understand the RAID 520i adapter and it key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the RAID 520i adapter and consider its use in IT solutions.
Change History
Changes in the February 21 update:
- Added ThinkServer TS460 to the Server support section
Introduction
The ThinkServer RAID 520i Adapter is an entry-level 12 Gb SAS/SATA I/O Controller (IOC) that offers a cost-effective internal RAID solution for small to medium business customers. The adapter supports RAID levels 0, 1 and 10 standard with an option to support cacheless RAID 5 and 50 with the addition of a hardware key.

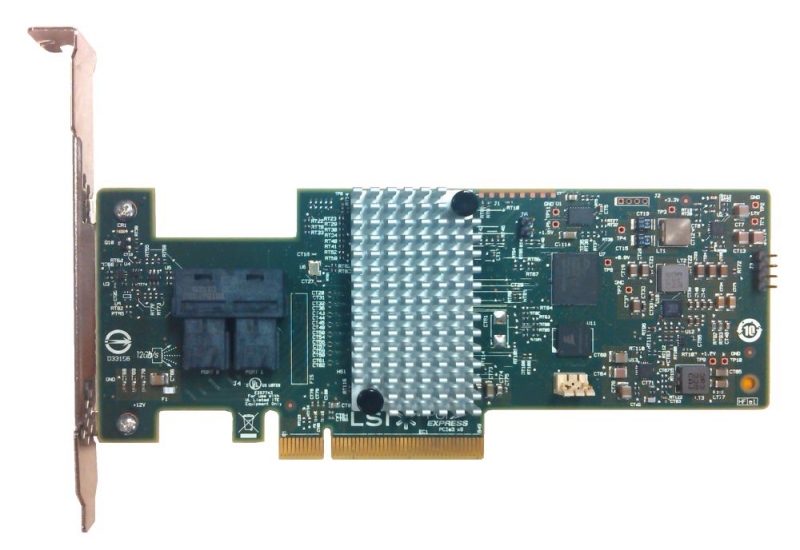

The following figure shows the ThinkServer RAID 520i Adapter.
| General Information | |
|---|---|
| Brand Name: | Lenovo |
| Manufacturer Part Number: | 4XC0G88840 |
| Manufacturer Website Address: | http://www3.lenovo.com/au/en |
| Manufacturer: | Lenovo Group Limited |
| Packaged Quantity: | 1 |
| Product Model: | 520i |
| Product Name: | ThinkServer RAID 520i PCIe Adapter |
| Product Type: | SAS Controller |
| Interfaces/Ports | |
|---|---|
| Number of SAS Ports (Internal): | 8 |
| SAS Connector Details: | 2 SFF-8643 |
| Total Number of SAS Ports: | 8 |
| Miscellaneous | |
|---|---|
| Platform Supported: | PC |
| Physical Characteristics | |
|---|---|
| Depth: | 12 mm |
| Form Factor: | Plug-in Card |
| Height: | 20 mm |
| Width: | 4 mm |
| Technical Information | |
|---|---|
| Controller Type: | 12Gb/s SAS |
| Host Interface: | PCI Express 3.0 x8 |
| RAID Levels: | 0 |
| JBOD | |
| RAID Supported: | Yes |
