Introduction
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.
The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
Tip: The M.2 adapters are also referred to as enablement kits. In the product publications, they are referred to as M.2 backplanes. These terms are interchangable.

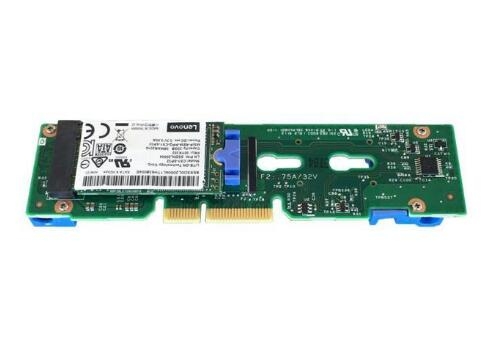

A Dual M.2 Adapter with one 128GB M.2 drive partially inserted is shown in the following figure. The second M.2 drive is installed on the other side of the adapter.
Figure 1. Dual M.2 Adapter and a 128 GB M.2 drive
Did you know?
The Dual M.2 Adapter features a Lenovo patented design that provides a tool-less method for attaching back-to-back M.2 modules to the adapter.
The Dual M.2 Adapter also includes a built-in RAID controller and allows two installed M.2 drives to be configured either as RAID-1, RAID-0, or two independent drives (JBOD mode).
Part number information
The following table lists the ThinkSystem part numbers.
| Part number | Feature code | Description | Maximum Supported |
|---|---|---|---|
| M.2 adapters | |||
| 7Y37A01092 | AUMU | ThinkSystem M.2 Enablement Kit (contains the Single M.2 Adapter; supports 1 drive) | 1 |
| 7Y37A01093 | AUMV | ThinkSystem M.2 with Mirroring Enablement Kit (contains the Dual M.2 Adapter, supports 1 or 2 drives) | 1 |
| M.2 drives | |||
| 7N47A00129 | AUUL | ThinkSystem M.2 CV1 32GB SATA 6Gbps Non-Hot-Swap SSD | 1 / 2* |
| 7N47A00130 | AUUV | ThinkSystem M.2 CV3 128GB SATA 6Gbps Non-Hot-Swap SSD | 1 / 2* |
| 7SD7A05703 | B11V | ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD | 1 / 2* |
Features
Features of the ThinkSystem M.2 solution:
- Hardened boot media that does not use a drive bay
- Both mechanically & electronically designed to be more robust than any prior implementation
- Design provides hardware mirroring of two M.2 SSDs
- M.2 SSDs have higher mean time between failures (MTBF) than SD cards or USB keys
- Tool-less, patented clip design that supports back to back connector layout, providing simple install in limited space.
Features of the Dual M.2 Adapter:
- PCIe 2.0 x2 host interface (connects to the PCH)
- Based on the Marvell 88SE9230 6 Gbps SATA controller
- Supports one or two 6 Gbps SATA M.2 drives**
- Supports 3 different physical sizes of M.2 drives: 42mm (2242), 60mm (2260) and 80mm (2280)*
- RAID functionality provided by the M.2 adapter
- RAID 1 by default; also supports RAID 0 and JBOD
- UEFI-based settings to enable/disable RAID mode and to review inventory
- Adapter and drive firmware update using Lenovo firmware tools
- Management via I2C interface
Features of the Single M.2 Adapter:
- 6 Gbps SATA host interface (connects to the PCH)
- Supports one 6 Gbps SATA M.2 drive
- Supports 3 different physical sizes of M.2 drives: 42mm (2242), 60mm (2260) and 80mm (2280)*
- Drive firmware update using Lenovo firmware tools
- Management via I2C interface
- VPD reporting of adapter inventory
