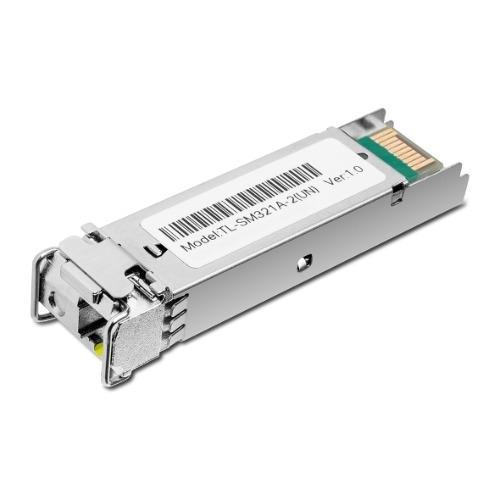

main product photo

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550 nm, RX: 1310 nm (TL-SM321A-2)

SKU
303152
Brand
Tp-link
Manufacturer Link
MPN
SM321A-2
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$21.00
Buy Now And Earn 21 Reward Points!
Add to Compare

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)


• Adopts the latest standard 1000Base-BX
• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Supports Digital Diagnostic Monitoring (DDM)
• Supports Hot Swappable

HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, TCP/IP

Wave Length TX: 1550 nm
RX: 1310 nm

Power Supply 3.3 V

Safety & Emission FCC, CE

Cabel Single-Mode Fiber

Fiber Type 9/125 μm Single-Mode
Max. Cable Length 2 KM
Data Rate 1.25 Gbps

Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2) TX: 1550 nm, RX: 1310 nm, Max. Cable Length 2 KM
