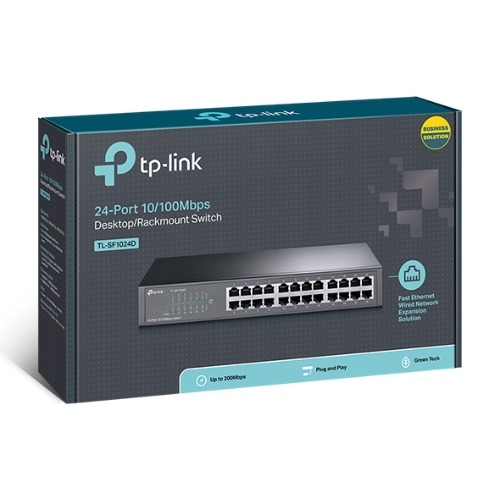

TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without traditional hubs collision phenomenon downgrading the performance. Easy read LED indicators are supported for cable installation and normal TL-SF1024 24-port 10/100Mbps Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. Rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for less than 24 users environment. The plug-and-play and auto-negotiation capabilities allow the Switch to auto-detect its link partner (Ethernet adapter, for example) with the best speed. Each port provides full bandwidth (Maximum with 200Mbps in full duplex mode) without traditional hub's collision phenomenon downgrading the performance. All ports can be the uplink (cascade) port which is provided to link to another Switch for more ports expansion. Easy read LED indicators are supported for cable installation and normal operation diagnostics. The Switch can be used on desktop and rack-mount.
Features:
Complies with IEEE 802.3/802.3u Ethernet standards
24 10/100Mbps UTP/STP ports supporting Auto-MDI/MDIX
Full and half duplex support
IEEE802.3x flow control support
Automatic source address learning
Plug and play
Easy read LED indicators for installation and operation diagnostic
Specifications:
Access Method CSMA/CD,10Mbps and 100Mbps
Standard Conformance IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Number of Ports 24 UTP/STP MDX ports
Network Media (Cable) 10Base-T:UTP category 3, 4, 5 cable100Base-TX:UTP category 5 cable
Switch Mechanism Filtering, Forwarding and Learning Switching Method: Store-and-Forward Filtering Rate: Line Speed Forwarding Rate: Line Speed
LED Indicators Power10/100Mbps,Link/Activity, Full Duplex/Collision
Temperature Operation: 0? to 50? (or 32? to 122?)Storage:-40? to 70?(or -40? to 158?)
Humidity Operation: 10% to 90% RHStorage:5% to 90% RH
Input Power AC 100~260V/50-60Hz/1A
