HARDWARE FEATURES
Interface	4 10/100Mbps RJ45 Ports 1 RJ11 Port
Button	1 Power On/Off Switch 1 WPS Button 1 Wi-Fi On/Off Button
External Power Supply	9VDC/0.85A
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm )
Antenna Type	Omni directional, Fixed
Antenna Gain	2x5dBi

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, 802.11g, 802.11b
Frequency	2.400-2.4835GHz
Transmit Power	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, Wireless MAC Filtering

SOFTWARE FEATURES
Quality of Service	QoS Remarking based on IPP/ToS, DSCP and 802.1p
Security	NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
Management	Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Port Forwarding	Virtual Server, DMZ, ACL(Access Control List)
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), PVC - Up to 8 PVCs
Advanced Features	Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TD-W8961N External Splitter RJ-11 Telephone Cable RJ-45 Ethernet Cable Quick Installation Guide Power Adapter
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ ，Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

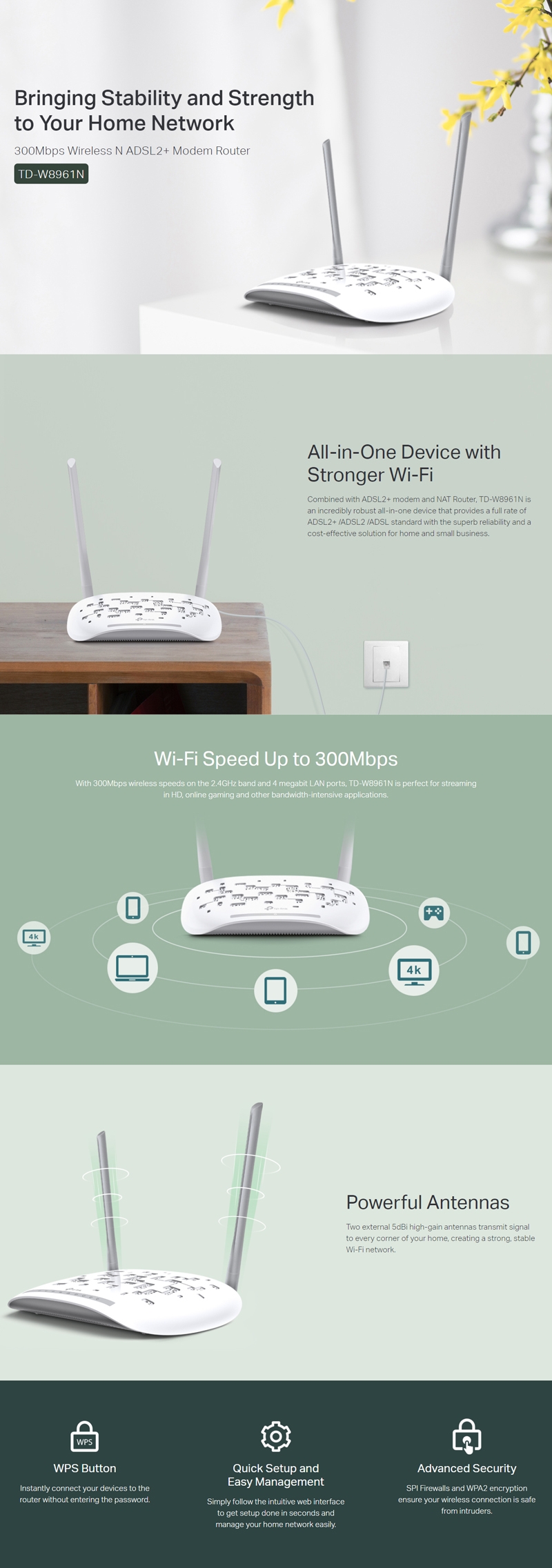

TP-Link 300Mbps Wireless N ADSL2+ Modem Router TD-W8961N The TP-LINK Wireless N Access Point TD-W8961N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The easy one-touch wireless security encryption with the WPS button makes it simpler to connect wirelessly and secure. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use. Features: All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming Easy Setup Assistant with multi-language support provides a quick & hassle-free installation Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button Warranty: 1 year limited warranty HARDWARE FEATURES Interface 4 10/100Mbps RJ45 Ports1 RJ11 Port Button 1 Power On/Off Switch1 WPS Button1 Wi-Fi On/Off Button External Power Supply 9VDC/0.85A IEEE Standards IEEE 802.3, 802.3u ADSL Standards Full-rate ANSI T1.413 Issue 2,ITU-T G.992.1(G.DMT),ITU-T G.992.2(G.Lite)ITU-T G.994.1 (G.hs),ITU-T G.995.1 ADSL2 Standards ITU-T G.992.3 (G.dmt.bis),ITU-T G.992.4 (G.lite.bis) ADSL2+ Standards ITU-T G.992.5 Dimensions ( W x D x H ) 7.7 * 5.1 * 1.4 in. (195 * 130 * 35 mm ) Antenna Type Omni directional, Fixed Antenna Gain 2x5dBi WIRELESS FEATURES Wireless Standards IEEE 802.11n, 802.11g, 802.11b Frequency 2.400-2.4835GHz Transmit Power <20dBm(EIRP) Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,Wireless MAC Filtering SOFTWARE FEATURES Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p Security NAT Firewall,SPI Firewall,MAC / IP / Packet / Application / URL Filtering,Denial of Service(DoS),SYN Flooding,Ping of Death Management Web Based Configuration(HTTP),Remote management,Telnet management,Command Line Interface,SSL for TR-069,SNMP v1/2c,SNMP over EOC,Web Based Firmware Upgrade,CWMP(TR-069),Diagnostic Tools Port Forwarding Virtual Server, DMZ, ACL(Access Control List) VPN Pass-Through PPTP, L2TP, IPSec Pass-through ATM/PPP Protocols ATM Forum UNI3.1/4.0,PPP over ATM (RFC 2364),PPP over Ethernet (RFC2516),IPoA (RFC1577/2225),PVC - Up to 8 PVCs Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;Dynamic Host Configuration Protocol (DHCP), DHCP relay;Network Address Translation (NAT);PVC/Ethernet Port MappingVLAN, 802.1P,Static Routing, RIP v1/v2 (optional);DNS Relay, DDNS,IGMP snooping V1/2IGMP Multicast,UPnP OTHERS Certification CE, FCC, RoHS Package Contents TD-W8961NExternal SplitterRJ-11 Telephone CableRJ-45 Ethernet CableQuick Installation GuidePower Adapter System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ ，Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Environment Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
