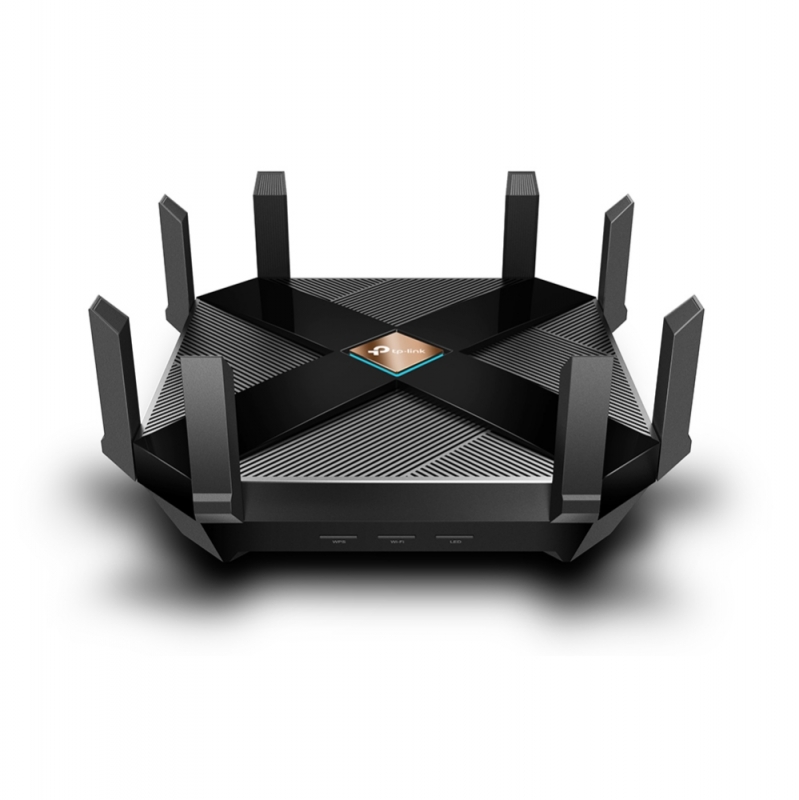

TP-Link Archer AX6000 Next-Gen Wi-Fi 6 (802.11ax) Router, 1x 2.5Gbps WAN, 8x Gigabit LAN, 2x USB 3 (WIFI6)
SKU
294879
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$485.00
Buy Now And Earn 485 Reward Points!
WIRELESS | |
---|---|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX6000 5 GHz: 4804 Mbps (802.11ax) 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range |
4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
WiFi Capacity |
Very High Dual-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
Working Modes |
Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | 1.8 GHz 64 Bit Quad-Core CPU |
Ethernet Ports |
1× 2.5 Gbps WAN Port 8× Gigabit LAN Ports Link Aggregation (802.3ad) available with 2× LAN ports |
USB Support |
1× USB-C 3.0 Port 1× USB-A 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server |
Buttons |
Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ⎓ 5 A |
SECURITY | |
---|---|
WiFi Encryption |
WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log |
Guest Network |
1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server |
OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols |
IPv4 IPv6 |
Service Kits |
HomeCare™ Learn More> |
Parental Controls |
HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight Monthly Report |
WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service |
QoS by Device HomeCare™ QoS QoS by Application |
Cloud Service |
Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding |
Port Forwarding Port Triggering DMZ UPnP |
IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP |
Address Reservation DHCP Client List Server |
DDNS |
TP-Link NO-IP DynDNS |
Management |
Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) |
10.3 × 10.3 × 2.4 in. (261.2 × 261.2 × 60.2 mm) |
Package Contents |
Wi-Fi Router Archer AX6000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or
other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power |
CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz) <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
WiFi Reception Sensitivity |
5 GHz_1: 11a 6Mbps:-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 5 GHz_2: 11a 6Mbps:-96dBm, 11a 54Mbps:-78dBm 11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm 11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm 11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm 11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm 11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm 11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm 11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm 11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm |
