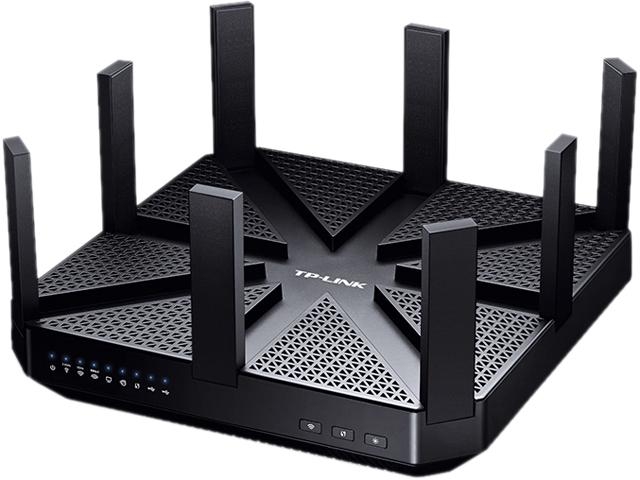

Tp-link Archer C5400, Ac5400 Wireless Tri-band Mu-mimo Gigabit Router Archer-c5400

Name: Tp-link Archer C5400, Ac5400 Wireless Tri-band Mu-mimo Gigabit Router Archer-c5400
Brand: Tp-link
SKU: 237131
Availability: OutOfStock

SKU

237131

Brand

Tp-link

Manufacturer Link

Manufacturer Product Link

Warranty

1 Year Manufacturer's return to base

No Longer Available

$0.00

Buy Now And Earn 0 Reward Points!

AC5400 Wireless Tri-Band MU-MIMO Gigabit RouterArcher C5400

Boost Your Wi-Fi - Advanced NitroQAM^TM (1024-QAM) and 4-Stream technology increase maximum Wi-Fi speeds on all bands by 25%, achieving combined Wi-Fi speeds of up to 5334Mbps
More Bands, More Devices - Tri-Band Wi-Fi offers three distinct wireless bands for more devices
Multiple Reliable Connections - MU-MIMO allows the router to achieve 4X efficiency by communicating with up to four devices at once
Smoother Performance - Smart Connect automatically assigns each device to the best available band to achieve optimal performance
Powerful Processing - Ultra-Fast 1.4GHz Dual-Core CPU and 3 co-processors provide fast and stable overall performance
Maximized Range - 8 External Antennas maximize the Wi-Fi coverage and enhance the wireless connections

View larger

Product Specifications

Up to 5400Mbps AC Wi-Fi Speed
Tri-Band 2.4GHz (1000Mbps) + 5GHz (2167Mbps) + 5GHz (2167Mbps)
1.4GHz Dual Core Processor + 3 Co-processors
1x 3.0 USB, 1x 2.0 USB
4x Gigabit Ethernet Ports
8x External Antennas

Game Like Never Before

Jump into the action and stay there with the Archer C5400. Wave 2 Tri-Band creates faster connections than ever across three Wi-Fi bands, and powerful XStream processing keeps each one running smoothly. Now you can dedicate an entire band to gaming without short-changing your other devices.

For lag-free performance on game consoles, 4-Stream and NitroQAM greatly increase the router’s throughput. Mobile gamers enjoy faster connections across the home thanks to powerful antennas specially designed to send a high-speed wireless signal up to 10,000 square feet.

XStream Architecture for Powerful Processing

With XStream architecture, the Archer C5400 dedicates one processor to each of its three Wi-Fi bands. These processors handle the traffic for each band, freeing the router’s powerful 1.4GHz dual-core CPU to take care of everything else.

All this extra brainpower keeps your Wi-Fi running smoothly so everyone in your home can enjoy what they love most, whether that’s watching movies in 4K, gaming online, streaming music—or all of the above.

XStream Architecture

NitroQAM and 4-Stream

MU-MIMO and Smart Connect

Customizable QoS

Features

View larger	View larger	View larger	View larger

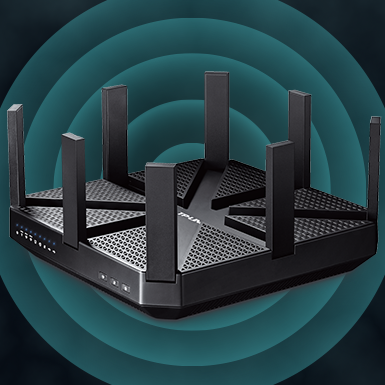

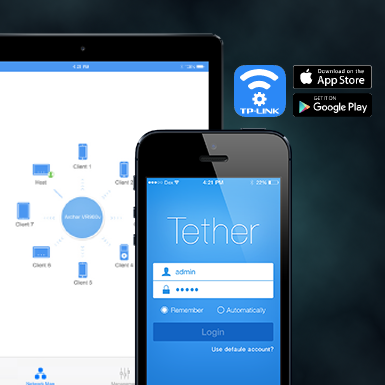

Innovative Antenna Design Eight dual band antennas send strong Wi-Fi up to 10,000 square feet letting you game on your mobile devices anywhere in your home, from your favorite spot on the couch to the comfort of your bed.	Media Sharing and VPN USB 3.0 and 2.0 ports make it easy to share photos, videos, and music on your home network. When away from home, a VPN allows you to securely access hard drives and other devices connected to the router through USB and Wi-Fi.	Intuitive Mobile Interface Set up the Archer C5400 in minutes thanks to its intuitive web interface and the powerful Tether app. When your network is up and running, you can download the free Tether app to easily adjust your network settings from anywhere.	Lifetime Service and One of the Industry-Leading Warranty Need help setting up your TP-Link device? Our team is here 24/7 for toll-free technical support, including setup, no matter when you purchased our product. Plus, our 2-year warranty gives you worry-free service. For more information you can contact the official customer service or visit the official website.

Model

Brand: TP-Link

Model: Archer C5400

Details

Standards: IEEE 802.11ac/n/a 5 GHz
IEEE 802.11b/g/n 2.4 GHz

Network Protocols: Supports IPv4 and IPv6

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA-PSK2 encryptions

WPA/WPA2: WPA2

WAN Ports: 1 x 10/100/1000M WAN; 4 x 10/100/1000M LAN

LAN Ports: 4 x 10/100/1000M

Buttons: Wireless On / Off Button
Power On / off Button
LED On / off Button
WPS Button
Reset Button

Wireless Data Rates: 2167 Mbps at 5 GHz-1, 2167 Mbps at 5GHz-2, 1000 Mbps at 2.4 GHz

Frequency Band: 2.4 GHz / 5 GHz

Antenna: 4 x Dual Band Antennas, 4 x 5 GHz antennas

Transmitted Power: CE: <20 dBm (2.4 GHz), <23 dBm (5.15 GHz ~ 5.35 GHz); <30 dBm (5.47 GHz ~ 5.725 GHz)
FCC: <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz & 5.725 GHz ~ 5.825 GHz)

Receiver Sensitivity: 5 GHz:
11a 6 Mbps: -92 dBm, 11a 54 Mbps: -75 dBm
11ac HT20 (MCS8): -68 dBm, 11ac HT20 (MCS11): -61 dBm
11ac HT40 (MCS9): -63 dBm, 11ac HT40 (MCS11): -58 dBm
11ac HT80 (MCS9): -60 dBm, 11ac HT80 (MCS11): -55 dBm
2.4 GHz:
11g 54M: -77 dBm
11n HT20 (MCS8): -70 dBm, 11ac HT20 (MCS11): -63 dBm
11ac HT40 (MCS9): -66 dBm, 11ac HT40 (MCS11): -61 dBm

Interface: 1 USB 3.0 Port + 1 USB 2.0 Port

VPN support: PPTP, L2TP, IPSec

Power Adapter: 12V / 5A

System Requirements: Microsoft Windows 98SE / NT / 2000 / XP / Vista / 7 / 8 / 8.1 / 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an Internet Service Provider (for Internet access)

Dimensions: 1.69" x 9.06" x 9.06"

Temperature: Operating Temperature: 0 ~ 40 degree Celsius (32 ~ 104 degree Fahrenheit)
Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)

Humidity: Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

Features

Features: Boost Your Wi-Fi - Advanced NitroQAMTM (1024-QAM) and 4-Stream technology increase maximum Wi-Fi speeds on all bands by 25%, achieving combined Wi-Fi speeds of up to 5334 Mbps

More Bands, More Devices - Tri-Band Wi-Fi offers three distinct wireless bands for more devices

Multiple Reliable Connections - MU-MIMO allows the router to achieve 4X efficiency by communicating with up to four devices at once

Smoother Performance - Smart Connect automatically assigns each device to the best available band to achieve optimal performance

Powerful Processing - Ultra-Fast 1.4 GHz Dual-Core CPU and 3 co-processors provide fast and stable overall performance

Maximized Range - 8 External Antennas maximize the Wi-Fi coverage and enhance the wireless connections

Packaging

Package Contents: AC5400 Wireless Tri-Band MU-MIMO Gigabit Router Archer C5400
Power Supply Unit
Ethernet Cable
Quick Installation Guide
