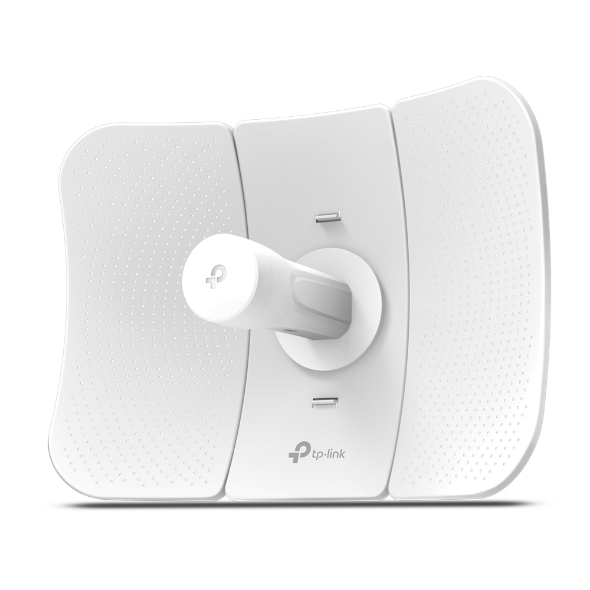

Tp-Link Cpe605 5Ghz 150Mbps 23Dbi Outdoor Cpe Cpe605
SKU
284581
Brand
MPN
CPE605
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$129.00
Buy Now And Earn 129 Reward Points!
| HARDWARE FEATURES | |
|---|---|
| Processor | Qualcomm 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM,8MB Flash |
| Interface |
1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button |
| Power Supply |
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Dimensions ( W x D x H ) | 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.) |
| Antenna Gain | 23dBi |
| Antenna Beamwidth | 7°(Azimuth), 10°(Elevation) |
| Protection |
15KV ESD Protection 6KV Lightning Protection |
| Enclosure |
Material: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds |
Up to 150Mbps (40MHz,Dynamic) Up to 72.2Mbps (20MHz,Dynamic) Up to 36.1Mbps (10MHz,Dynamic) Up to 18.05Mbps (5MHz,Dynamic) |
| Frequency | 5.15~5.85GHz |
| Transmit Power | Max. 23dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
|---|---|
| IPv6 | Yes |
| Network Configuration |
WAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding |
| Wireless Configurations |
Pharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
| Management |
Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
| System Tools |
Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
| System-level Optimizations |
Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
| POE ADAPTER FEATURES | |
|---|---|
| Dimensions(W x D x H) | 85.8×43.9×29.7 mm |
| Interfaces |
1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data) |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output |
24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) |
| Efficiency | >84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IP65 |
| Package Contents |

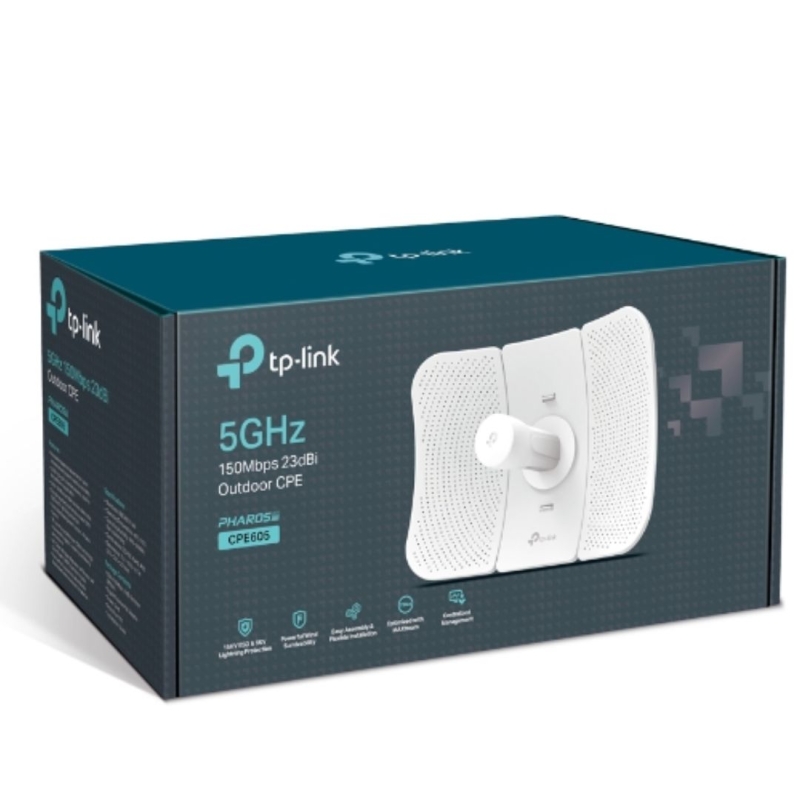

Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows
8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
| Environment |
Operating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
