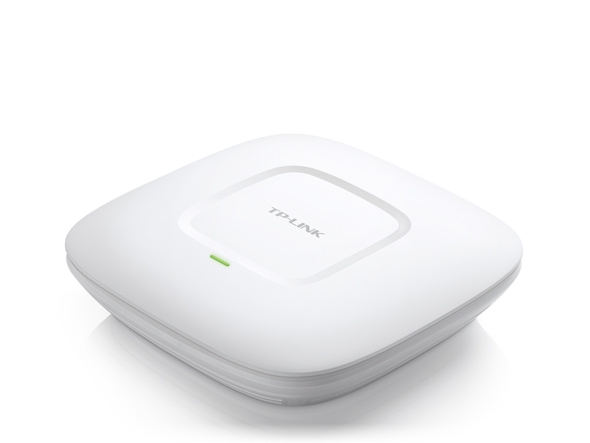

Tp-link Eap115 300mbps Wireless N300 Ceiling Mount Access Point 1x Rj45 Port Poe 2x3dbi Omni Internal

SKU
248563
Brand
MPN
EAP115
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $74.00 Regular Price $85.00
Buy Now And Earn 74 Reward Points!

QUICK OVERVIEW

Antenna EAP115

300Mbps Wireless N Ceiling Mount Access PointEAP115

  • Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs

  • The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software

  • Supports Power over Ethernet (802.3af) for convenient and affordable installation

  • Simple mounting design for easy attachment to a wall or ceiling

  • Captive portal provides one convenient method of authentication for Wi-Fi guests

  • Enterprise class Wi-Fi security help to decrease network security threats

  • Multi-SSID divides multiple wireless networks for different user types

An Affordable, Scalable Business Wi-Fi Solution

300Mbps Wireless N Ceiling Mount Access Point

eap115

Build and manage a scalable Wi-Fi network for your business with the Auranet business class solution, tailored to handle the power of hundreds of TP-LINK EAPs at an affordable cost.

Trouble-Free Centralized Management.
No Technicians Needed.

Auranet enables you to set up a centralized network management system without the need of any IT or setup fees.

Free Multi-Function Auranet Controller Software

Concurrently manage and monitor hundreds of Auranet EAPs in a
single location. Unlike most standard hardware controllers, the
TP-LINK EAP Controller Software doesn’t require any special training or added costs.

Learn more >

EAP Controller Software

Easy-to-use Cluster Mode

The user-friendly Cluster Mode allows you to manage up to 24 Auranet EAPs in your business network without requiring any extra hardware or software. Organize your network administration system by controlling multiple access points at a time with the same simplicity of a single home network router.

  • Distribute Wireless Settings
  • PoE Switch
  • Master EAP
  • Member EAP
  • Member EAP
  • Add member EAP



Custom Guest Authentication

The captive portal provides customizable guest authentication settings for maximized user control. Administrators can easily set and adjust guest Wi-Fi settings by designing a unique authentication page, establishing a voucher system to limit the duration of use for each client, or creating "Operator" accounts, for permission to manage the guest network without having access to other EAP administrative features.

Welcome to
Patmo Saktis

Voucher Code

I accept the term of use

Easy Mount Design and PoE

Timesaving and Flexible Deployment

The Auranet EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Unified Wi-Fi for Multi-user Environment

The Auranet business Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the
same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels,
salons, chain-stores, schools, and restaurants.

  •  Motel
  •  Café
  •  Chain-store
  •  School
  • EAP Controller Software enables administrators to easily manage hundreds of EAPs

  • Cluster management makes it easy to manage a small network by allowing up to 24 Auranet EAP115 units to act as a single cluster

  • Supports IEEE 802.3af PoE for convenient and affordable installation

  • Simple mounting design for easy attachment to a wall or ceiling

  • 300Mbps wireless data rate for uninterrupted wireless connection

  • Captive portal provides one convenient method of authentication for Wi-Fi guests

  • Rate limit per SSID to restrict the bandwidth of each client

  • Access Control restricts sets limitations for client access to the specified network segment

  • Reboot Schedule enables all APs to automatically reboot within a specified time

  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN network

  • Multi-SSID divides multiple wireless network for different user types

  • Load balance ensures large business networks with smooth a network experience

  • Compatible with 802.11 b/g/n products

  • QoS function prioritizes data, voice, and video to ensure time-sensitive applications take priority over all other traffic

  • Durable housing prevents dust from dropping onto the PCB through bypass louver to provide long-term, unhindered operation

  • Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button Reset
Power Supply PoE or external 12VDC/1.0A power supply
Power Consumption 5W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power CE:
<20dBm
FCC:
<26dBm
MANAGEMENT
Auranet Controller Software Yes
Cluster Mode Yes
EAP Controller Software
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP115
Power Adapter
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows 10/8/7/Vista/XP
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TP-Link EAP115 300Mbps Wireless N300 Ceiling Mount Access Point 1x RJ45 Port PoE 2x3dBi Omni Internal Antenna

Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
Supports Power over Ethernet (802.3af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Enterprise class Wi-Fi security help to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types

HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button Reset
Power Supply PoE or external 12VDC/1.0A power supply
Power Consumption 5W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 2* 3dBi Omni
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Wireless Functions Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK
