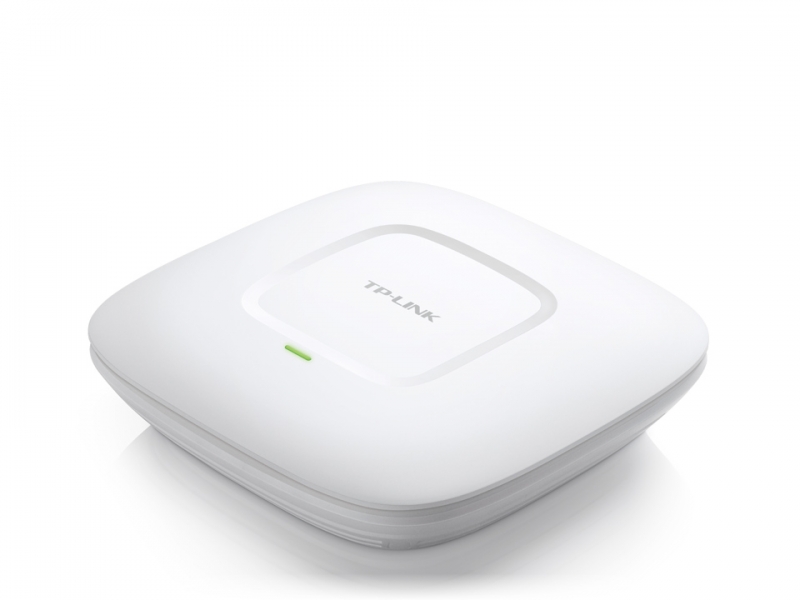

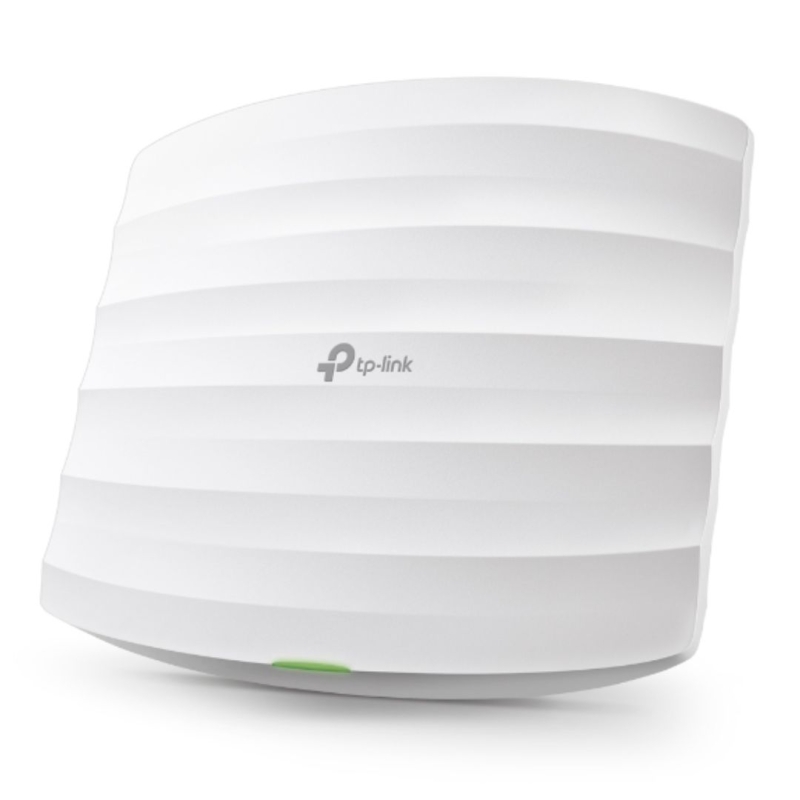

Tp-link Eap225 1200mbps Wireless Ac1200 Dual Band Gigabit Ceiling Wall Mount Access Point

Name: Tp-link Eap225 1200mbps Wireless Ac1200 Dual Band Gigabit Ceiling Wall Mount Access Point
Brand: Tp-link
SKU: 235906
Price: 109 AUD
Availability: InStock

SKU

235906

Brand

Tp-link

Manufacturer Link

MPN

EAP225

Manufacturer Product Link

Warranty

Standard Manufacturer's Warranty

Availability

In stock

Freight Estimate

$109.00

Buy Now And Earn 109 Reward Points!

QUICK OVERVIEW

PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID EAP225

Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Support Power over Ethernet(802.3af) for convenient and affordable installation
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

1167Mbps wireless data rate for uninterrupted wireless connection
Free Controller Software for easy centralized management of hundreds of EAPs
Power over Ethernet(802.3af) Support for convenient and affordable installation
Captive portal provides one convenient method of authentication for Wi-Fi guests
Simple mounting design makes easy to install on any wall or ceiling surface
Rate limit on per SSID to restrict the bandwidth of each client
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Access Control restricts or only allows the client to access the specified network segment
Reboot Schedule enables all the APs to reboot automatically at a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Multi-SSID divides multiple wireless network for different users
Compatible with 802.11 a/b/g/n/ac products
Multiple operating modes including managed AP and standalone AP satisfy different application conditions
Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button	Reset
Power Supply	PoE or External 12VDC / 1.5A Power Supply
Power Consumption	10.15 W
Antenna Type	Internal Omni 2.4GHz: 2* 4dBi 5GHz: 2*4dBi
Mounting	Ceiling /Wall Mounting (Kits included)
Physical Security Lock	Kensington Lock Slot
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/g/b/a
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz:Up to 867Mbps 2.4GHz:Up to 300Mbps
Wireless Functions	Multiple SSIDs（Up to 16 SSIDs, 8 for each band） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Transmission Power	FCC: <27dBm(2.4GHz & 5GHz)

MANAGEMENT
EAP Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	FCC, RoHS
Package Contents	AC1200 Wireless Dual Band Gigabit Access Point EAP225 Power Adapter Mounting Kits Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: 0℃~60℃ (32℉~144℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TP-Link EAP225 AC1200 Wireless Dual Band Gigabit Ceiling Wall Mount Access Point 1200Mbps PoE 1xGbps LAN Internal Omni Antenna Load balance Multi-SSID

Simultaneous 300Mbps on 2.4GHz and 867Mbps on 5GHz totals 1200Mbps Wi-Fi speeds
Free EAP Controller Software lets administrators easily manage hundreds of EAPs
Support Power over Ethernet(802.3af) for convenient and affordable installation
Captive portal provides a convenient method for guest authentication
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections

HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button Reset
Power Supply PoE or External 12VDC / 1.5A Power Supply
Power Consumption 10.15 W
Antenna Type Internal Omni
2.4GHz: 2* 4dBi
5GHz: 2*4dBi
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
Wireless Functions Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Transmission Power CE：
<20dBm(2.4GHz)
<23dBm(5GHz)
FCC:
<27dBm(2.4GHz & 5GHz)
