Tp-link Er6020 Vpn Router Tl-er6020
No Longer Available
QUICK OVERVIEW
OVERVIEW

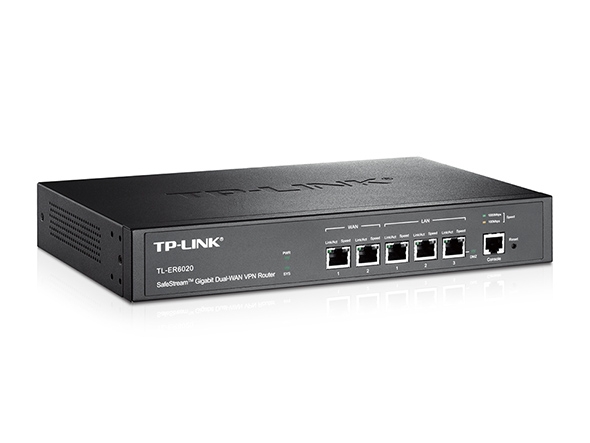

SafeStream Gigabit Dual-WAN VPN Router
TL-ER6020
Highlights:
2 Gigabit WAN ports, 2 Gigabit LAN ports, 1 Gigabit LAN/DMZ port and a console port
Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
Supports up to 50 IPsec VPN tunnels with a hardware-based VPN engine
Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
Deploys One-Click restriction of IM/P2P applications to manage staff online behavior
Professional 4kV lightning protection keeps your investments as safe as possible
Overview
What This Product Does
The TL-ER6020 SafeStream Gigabit Dual-WAN VPN Router from TP-LINK possesses excellent data processing capabilities and multiple powerful functions including IPsec/PPTP/L2TP VPN, Load Balance, Access Control, IM/P2P Blocking, DoS Defense, Bandwidth Control, Session Limit, PPPoE Server and so on, which consumedly meet the needs of small and medium enterprises, hotels and communities with large volumes of users demanding an efficient and easy-to-manage network with high security.
High VPN Performance
The TL-ER6020 supports multiple VPN protocols including IPsec, PPTP and L2TP in Client/Server mode and can handle pass-through traffic as well. It also features a built-in hardware-based VPN engine allowing the router to support and manage up to 50 LAN-to-LAN/Client-to-LAN IPsec VPN connections. Advanced VPN features include: DES/3DES/AES128/AES192/AES256 encryption, MD5/SHA1 authentication, Manual/IKE key management, and Main/Aggressive negotiation modes.
Abundant Security Features
For defense against external threats, TL-ER6020 features an automatic protection to detect and block Denial of service (DoS) attacks such as TCP/UDP/ICMP Flooding, TCP Scanning, Ping of Death and other related threats. Moreover, this router offers a hardware DMZ port, which allows you to setup public servers without exposing your internal network, to avoid attacks from external threats. For better management of the internal network, TL-ER6020 allows administrators to set rules to block specific web sites and IM/P2P applications with just one-click, and restrict staff to use specific services such as FTP, HTTP and SMTP.
Optimizing Bandwidth Usage
The TL-ER6020 features two WAN ports, allowing the router to satisfy various Internet access requirements through one device. The Intelligent Load Balancing function can distribute data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. With IP-based Bandwidth Control and Session Limit functions, network administrators can flexibly manage network bandwidth to optimize bandwidth usage.
Safety Minded Enterprise Investments
Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the electrical equipment and is discharged harmlessly into the Earth. This router is designed to prevent lightning up to 4Kv in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of mother nature's more violent situations.
Specifications:
Up to 50 IPsec VPN Tunnels, 50Mbps IPsec VPN Throughput
IPsec, PPTP, L2TP, L2TP over IPsec
IPsec NAT Traversal (NAT-T)
DES, 3DES, AES128, AES192, AES256 Encryption
MD5, SHA1 Authentication
Manual, IKE Key Management Mode
LAN-to-LAN, Client-to-LAN IPsec VPN
PPTP/L2TP VPN Server/Client
Hardware DMZ port
One-to-One NAT
FTP/H.323/SIP/IPsec/PPTP ALG
IM/P2P Application Blocking
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies)
ARP Inspection
DoS/DDoS Defense
Intelligent Load Balance
Policy Routing
Link Backup (Timing, Failover)
IP-based Bandwidth Control
Guarantee & Limited Bandwidth
IP-based Session Limit
Port VLAN, Port Mirror
Static Routing, RIP v1/v2
PPPoE Server
E-Bulletin
Specifications:
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Interface 2 Gigabit WAN ports
2 Gigabit LAN ports
1 Gigabit LAN/DMZ port
1 Console Port (RJ-45 On RS232)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100 STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100 STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Flash 16MB
DRAM DDRII 128MB
LED PWR, SYS, Link/Act, Speed, DMZ
Button Reset Button
Dimensions (W X D X H) 11.6*7.1*1.7in. (294*180*44mm)
13-inch Standard Rack-Mount Width, 1U Height
Fan Quantity Fanless
Power Supply Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
PERFORMANCE
Concurrent Session 30000
NAT Throughput 180Mbps
IPsec VPN Throughput (3DES) 80Mbps
BASIC FUNCTIONS
DHCP DHCP Server/Client
DHCP Reservation
MAC Clone Modify WAN/LAN/DMZ MAC Address
Switch Setting Port Mirror
Rate Control
Port Config
Port VLAN
WAN Connection Type Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Dual Access, BigPond
ADVANCED FUNCTIONS
Load Balance Intelligent Load Balance
Policy Routing
Protocol Binding
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server, DMZ Host, Port Triggering, UPnP
FTP/H.323/SIP/IPsec/PPTP ALG
Routing Static Routing
Dynamic Routing (RIP v1/v2)
System Mode NAT, Non-NAT, Classical Routing
Traffic Control IP-based Bandwidth Control
Guarantee & Limited Bandwidth
Time-scheduled Policy
IP-based Session Limit
VPN
IPsec VPN 50 IPsec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
IPsec NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
L2TP VPN 16 L2TP VPN Tunnels
L2TP VPN Server/Client
L2TP over IPsec
PPTP VPN 16 PPTP VPN Tunnels
PPTP VPN Server/Client
PPTP with MPPE Encryption
VPN Pass-through IPsec (ESP), PPTP, L2TP
SECURITY
ARP Inspection Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
Application Control IM, P2P, Web IM, Web SNS, Web Media, Protocol, Proxy Blocking
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
DMZ Port 1 Hardware DMZ Port
Filtering MAC Filtering
URL/Keywords Filtering
Web Content Filtering (Java, ActiveX, Cookies)
MANAGEMENT
Maintenance Web/CLI/Telnet Management Interface
Remote Management
Export & Import Configuration
NTP Synchronize
Syslog Support
Service PPPoE Server
E-Bulletin
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-ER6020
Resource CD
Power Cord
Ground Cable
Rack-mount Kit
Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
