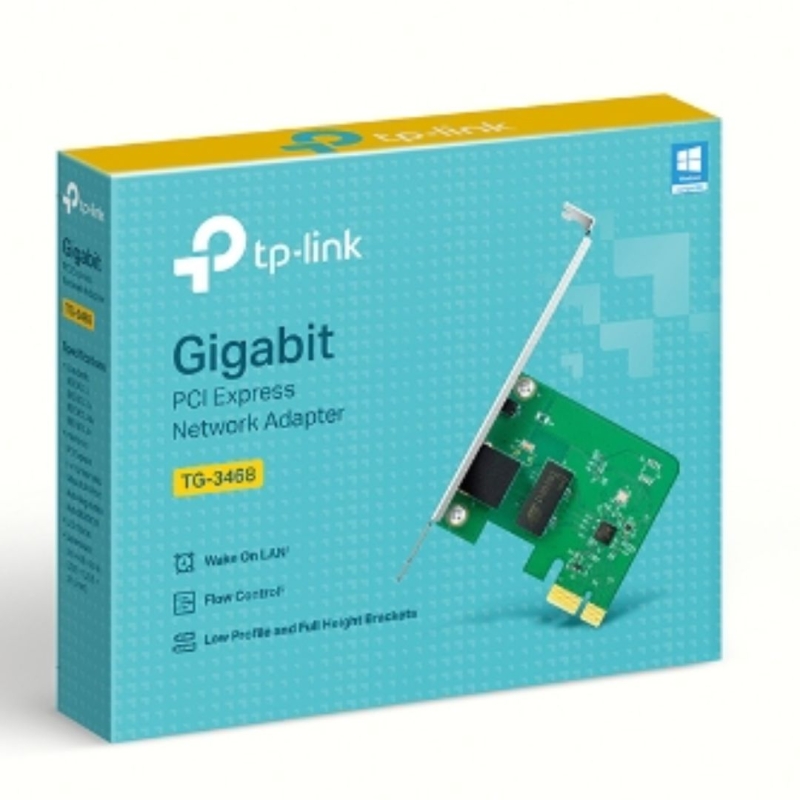

TP-Link TG-3468 ? Gigabit PCI Express Network Adapter
Highlights

10/100/1000Mbps PCIe Adapter
32-bit PCIe interface, saving the finite chassis space
Wake-on-LAN, convenient to manage over LAN
What This Product Does

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
Wake-on-LAN supporting
Auto-Negotiation and Auto MDI/MDIX
Supports IEEE 802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
Supports power down/link down power saving
Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit
Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
Interface 32-bit PCI Express
1 10/100/1000Mbps RJ45 port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Data Rates 10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode
LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification CE, FCC, RoHS
Package Contents Gigabit PCI Express Network Adapter TG-3468
Resource CD
Quick Installation Guide
System Requirements Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
