  • TP-Link Sm6110-Sr Omada 25GBase-SR SFP28 Lc Transceiver, Compatible With Switches With 25G Ports Like SX6632YF; And 10G Ports Like SG3428X And SG3452X SG3452
main product photo

TP-Link Sm6110-Sr Omada 25GBase-SR SFP28 Lc Transceiver, Compatible With Switches With 25G Ports Like SX6632YF; And 10G Ports Like SG3428X And SG3452X SG3452

SKU
221781
Brand
Tp-link
Manufacturer Link
MPN
SG3452
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$809.00
Buy Now And Earn 809 Reward Points!
Add to Compare

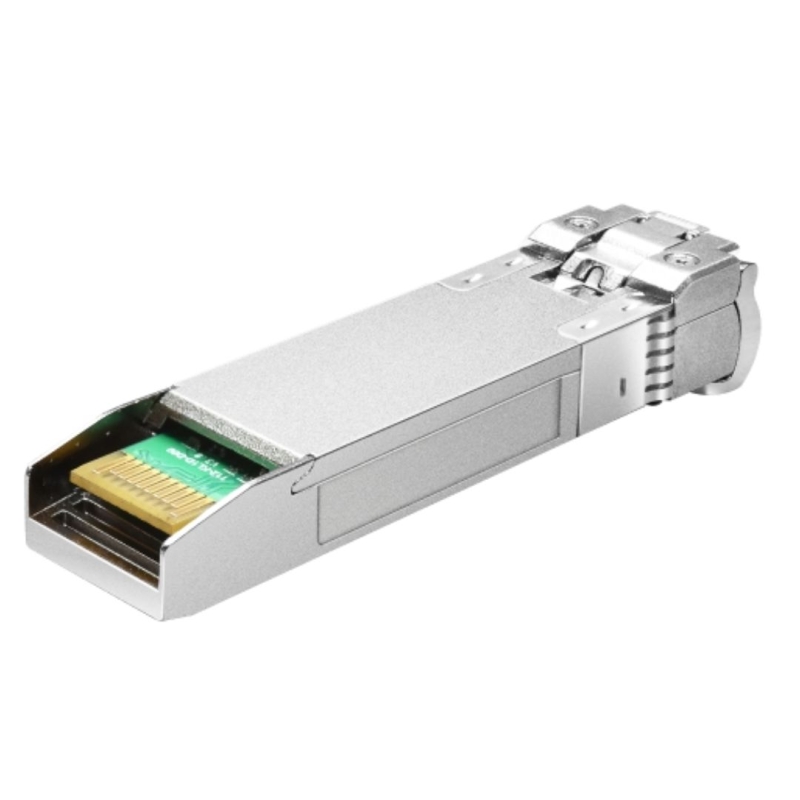

TP-Link SM6110-SR Omada 25GBase-SR SFP28 LC Transceiver
• Multi-mode SFP+/SFP28 LC Transceiver
• Hot-Pluggable with maximum flexibility
• Supports Digital Diagnostic Monitoring (DDM)
• Low Power Consumption no more than 1 W
• Compatible with 10G/25G Small Form Pluggable Multi-Source Agreement (SFP+/SFP28 MSA)
• Compatible with switches with 25G ports like SX6632YF; and 10G ports like SG3428X and SG3452X.

Warranty Period: 3-Year
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
　
Interface 48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port
　
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
　
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Power Consumption Maximum: 33.52W (220V/50Hz)
Dimensions ( W x D x H ) 17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm)
PERFORMANCE
Bandwidth/Backplane 104Gbps
Packet Forwarding Rate 77.4Mpps
MAC Address Table 16k
Jumbo Frame 9216 Bytes
SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
　
L2 and L2+ Features Static Routing、DHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT*
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP
　
Access Control List L2～L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based
　
Security IP-MAC-Port-VID Binding
AAA*
802.1x and Radius Authentication
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
　
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6

　
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL*
IPv6 Interface*
IPv6 Routing*
DHCPv6 Relay*
DHCPv6 Snooping*
　
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
sFlow*
PPPoE Circuit ID*
DHCP Relay*
DHCP Server*
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery*
　
OTHERS
Certification CE, FCC, RoHS

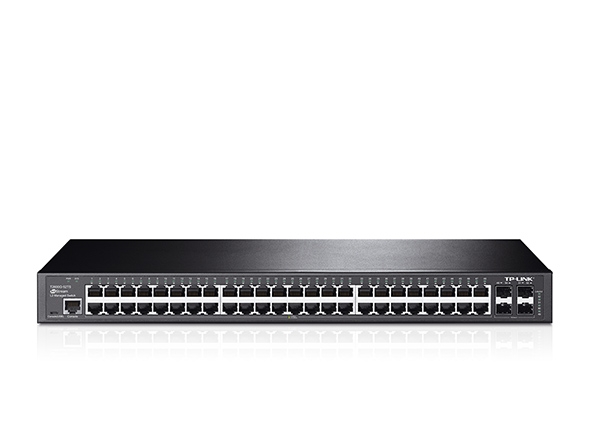

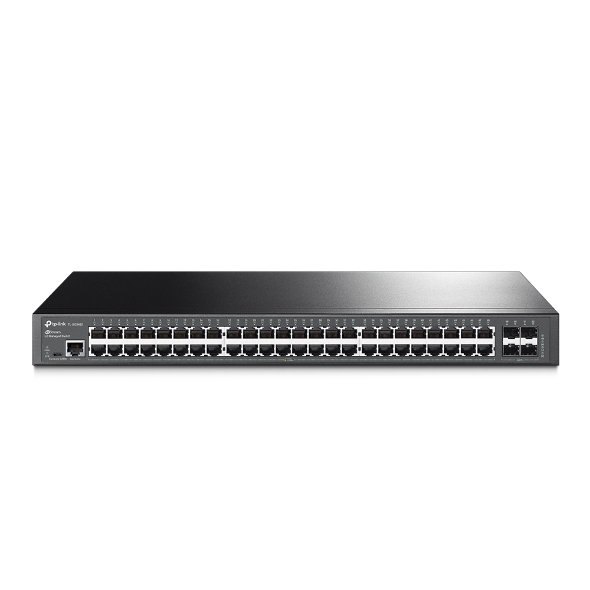

Package Contents JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots T2600G-52TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
　
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
NWTL-SM6110-SR
