4-Slot Rackmount Chassis



TL-MC1400



Highlights:



• 14 bays to house up to 14 media converters
• Optional redundant power supply to ensure non-stop reliable operation
• Hot-Swappable; easy & quick replacement of converter and power supply
• Mounted two cooling fans for better ventilation



Overview



What This Product Does

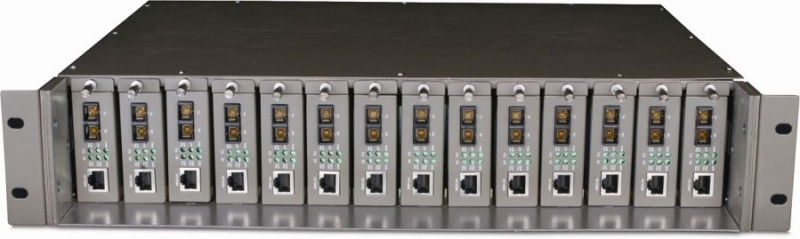

The TL-MC1400 14-Slot Rack-mount Chassis is specially designed to accommodate 14 TP-LINK‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.



*For TP-LINK Media Converters, the TL-MC1400 supports TL-MCXXX ver:2.0 only, not ver:1.0



Features





Specifications



  MEDIA CONVERTER & MODULE



  AC Power Supply



Input: 100-240V~50/60Hz 3.0A(Max)
Output:+9.5VDC, 9.5A(Max)
Vripple: 50mv
Noise: 100mv

Dimensions (W*D*H)



19.0*14.1*3.4in.(482*358*86)
Standard 19-Inch, 2U height

Weight



External Power Adapter

Environment



Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity:5%~90% non-condensing
