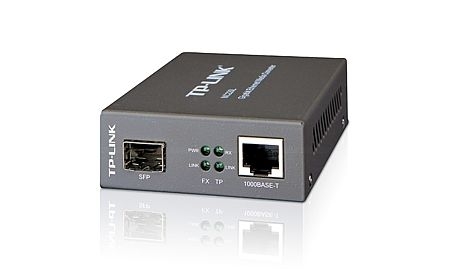

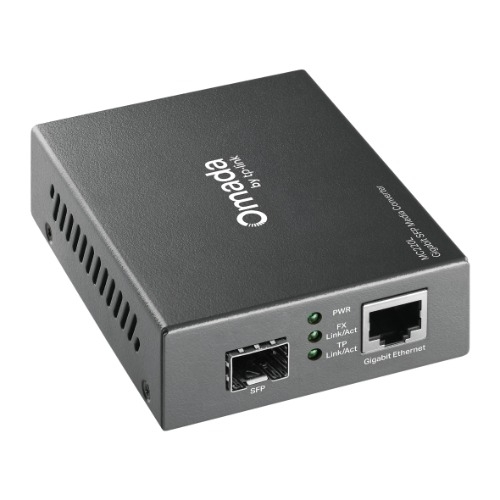

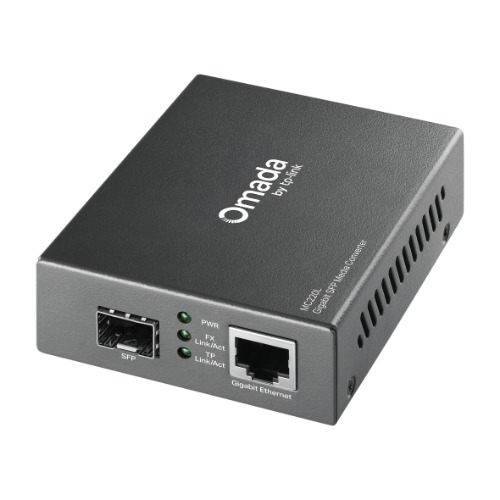

Tp-link Mc220l Modular Mc220l
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector.It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINKs 19system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MID/MID-X for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- FX port support hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x | |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x) | |
| Extends fiber distance up to 0.5km using 50/125um fiber, 0.22km using 62.5/125um fiber) | ||
| Ports | 1Gigabit SFP Slot | |
| 1 1000M RJ45 port (Auto MDI/MDIX) | ||
| Network Media | 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) |
| 1000BASE-FX | Multi-mode Fiber | |
| LED Indicators | PWR, LINK, RX | |
| Safety & Emission | FCC, CE | |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) | |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
| Power Supply | External Power Adapter | |
| Model NO. | Interface | Transmission Distance | Transmission Media | Output Center Wavelength |
| MC200CM | RJ45--SC | 0.55km(50/125um), 0.22km(62.5/125um) | Multi-mode Fiber,TP | 850nm |
| MC210CS | RJ45--SC | 15km | Single-mode Fiber,TP | 1310nm |
| MC220L | RJ45--LC | 0.55km /10km | Multi/Single-mode Fiber, TP | 850nm/1310n |
FX port supports hot-swappable
Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
