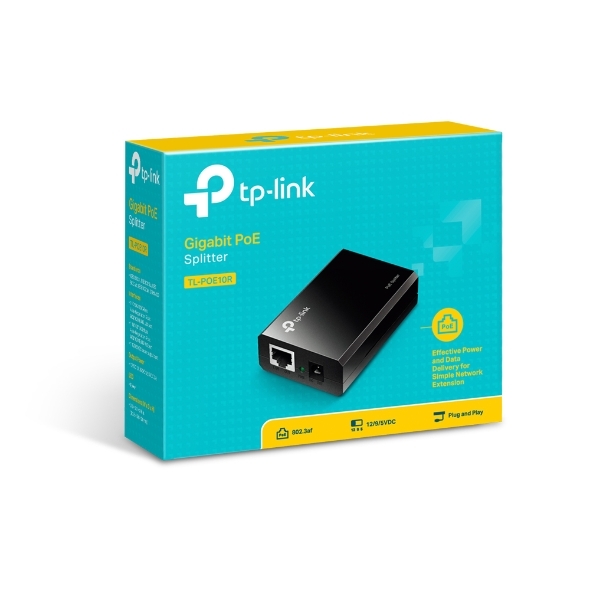

TP-Link TL-POE10R ? PoE Splitter
Highlights

IEEE 802.3af compliant
Selectable power output
Gigabit speed support
Plug-and-Play, requires no configuration
What This Product Does

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
IEEE 802.3af compliant
Delivers power up to 100 meters
Gigabit speed support
Optional 12V DC 9V DC or 5V DC power supply
Plug-and-Play, requires no configuration
HARDWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
1 48VDC POWER INPUT PORT
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
LED Indicator PWR
Dimensions ( W x D x H ) 3.2*2.1*0.9 in.(80.8*54*24 mm)
Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A
SOFTWARE FEATURES
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Supply
OTHERS
Certification FCC, CE, RoHS
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
