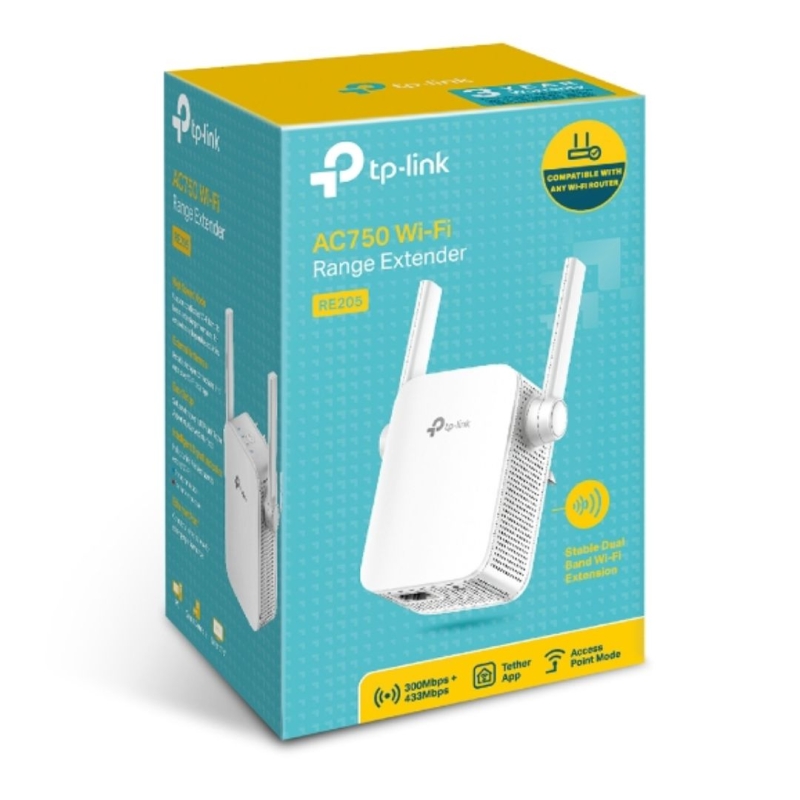

main product photo

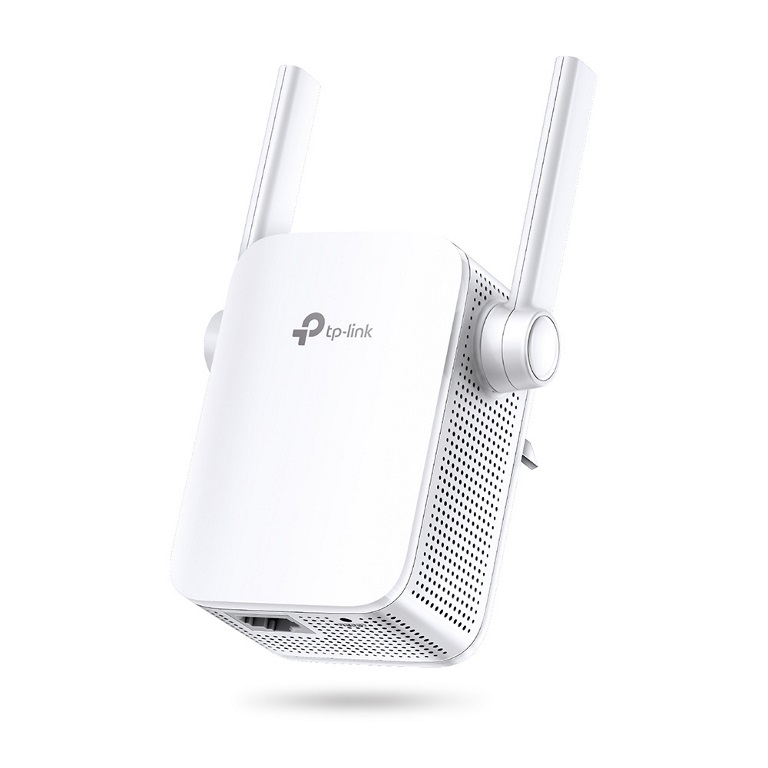

Tp-Link Re205 Ac750 Wi-Fi Range Extender Dual Band: 2.4Ghz @ 300Mbps 5Ghz @ 433Mbps. Re205

SKU
274737
Brand
Tp-link
Manufacturer Link
MPN
RE205
Manufacturer Product Link
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$68.00
Buy Now And Earn 68 Reward Points!
Add to Compare
HARDWARE FEATURES
Plug Type AU
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface 1 x 10/100M Ethernet Port (RJ45)
Button WPS Button, Reset Button
Power Consumption 7.3W（max power consumption）
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 x external
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity 5GHz：
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER

2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER
Wireless Modes Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <19.5dBm(2.4GHz)
<19.5dBm(5GHz)
OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 Wi-Fi Range Extender RE205
Quick Installation Guide
Box Dimensions (W X D X H) 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
