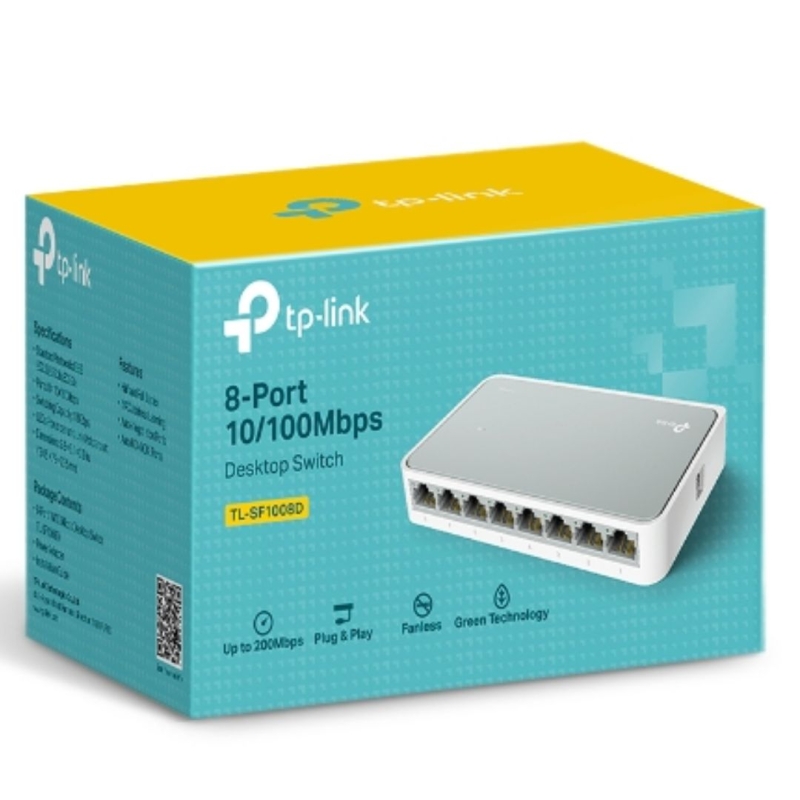

Tp-link Sf1008d 8port Switch 10/ 100m, Desktop, Plastic Case Tl-sf1008d
TP-Link TL-SF1008D ? 8-Port 10/100Mbps Desktop Switch
Highlights
8 10/100Mbps auto-negotiation RJ45 ports, supports auto MDI/MDIX
Green Ethernet technology saves the power up to 73%
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required
What This Product Does
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home
Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry
about the cable type, simply plug and play. Moreover, with the innovative
energy-efficient technology, the TL-SF1008D can save up to 73%* of the power
consumption and 70% of the packaging material can be recycled, making it an
eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45
ports. All ports support Auto MDI/MDIX function, eliminating the need for
crossover cables or Uplink ports. Featuring non-blocking switching architecture,
TL-SF1008D forwards and filters packets at full wire-speed for maximum
throughput. With 10K Jumbo frame, the performance of large files transfers is
improved significantly. And IEEE 802.3x flow control for Full Duplex mode and
backpressure for Half Duplex mode alleviate the traffic congestion and make
TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest
innovative energy-efficient technologies that can greatly expand your network
capacity with much less power. It automatically adjusts power consumption
according to the link status and cable length to limit the carbon footprint of
your network.
It also complies with the EU?S RoHS, prohibiting the use of certain hazardous
materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (10, 100 Mbps) and intelligently adjusts for compatibility and
optimal performance.
Innovative energy-efficient technology saves power up to 73%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps
hardware
Fanless design ensures quiet operation
Desktop design
Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD
Interface 8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply 100-240VAC, 50/60Hz
Fan Quantity Fanless
Data Rates 10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED Indicator Power, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H ) 5.3*3.1*0.9 in. (134.5*79*22.5mm)
Power Supply External Power Adapter
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions Green Technology, saving power up to73%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
OTHERS
Certification FCC, CE, RoHS
Package Contents 8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7,
Windows 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?C~40?C (32?F~104?F);
Storage Temperature: -40?C~70?C (-40?F~158?F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware
Fanless design ensures quiet operation
Desktop design
Plug and Play design simplifies installation
