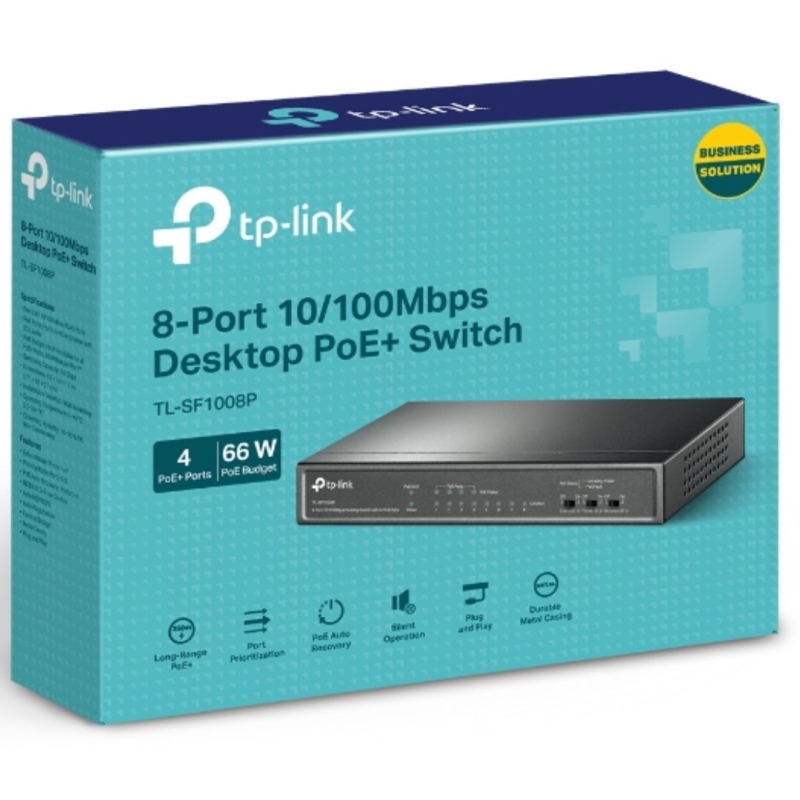

Tp-link Sf1008p Poe Switch 10/ 100m, Desktop, 8ports, Steel Nwtl-sf1008p
The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless
network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet
network capabilities
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support
Power over Ethernet (PoE) function. These PoE ports can automatically detect and
supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this
situation, the electrical power is transmitted along with data in one single
cable allowing you to expand your network where there are no power lines or
outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones,
etc.
TL-SF1008P has the priority * function which will help protect the system when
the system power is overloaded. If all PoE PDs power consumption is >= 53W, a
priority will be arranged among the PoE ports, then the system will cut off the
power of the lowest-priority port.
TL-SF1008P is easy to install and use. It requires no configuration and
installation. With desktop design, outstanding performance and quality, the
TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for
expanding your home or office network.
Features:
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 53W for all PoE ports
Supports PoE IEEE802.3af compliant PDs
Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for
Half-duplex Mode
1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
LED indicators for monitoring power, link, activity and speed
External power adapter supply
Specifications:
Software Specification
Standards and Protocols
IEEE 802.3, 802.3u, 802.3x, 802.3af
CSMA/CD, TCP/IP
Basic Function
Compatible with IEEE 802.3af compliant PDs
Port Priority Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex
Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Transmission Method
Store-and-Forward
Hardware Specification
Ports
8 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto
MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
LED Indicators
Power, Link/Act, 100Mbps, PoE Status, PoE MAX
Safety & Emission
FCC, CE
Dimensions (W*D*H)
6.7*3.9*1.1 in. (171*98*27 mm)
Environment
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply
External Power Adapter(Output: 48VDC / 1.25A)
Consumption
5.8 watts (max. no PD connected)
58 watts (max. with 53w PD conne
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
