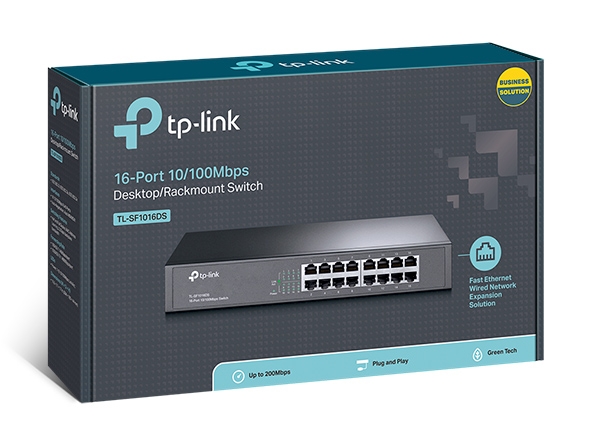

TL-SF1016DS

Spotlight:
16 10/100M RJ45 ports.
Supports MAC address self-learning and auto MDI/MDIX.
Standard 13-inch rack-mountable steel case.
Description

The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architectureTL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

TP-LINK Green Technology
This new generation The TL-SF1016DSFast EthernetSwitch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EUS RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Easy to Use
The auto features of thisfast ethernetswitch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features

Innovative energy-efficient technology saves power up to 25%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
3.2 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Desktop and Rack-mountable design
Plug and Play design simplifies installation
Fanless design to make sure it works quietly without disturbing your family
Specifications

Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth
3.2Gbps

MAC Address Table
8k

Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

Transmission Method
Store-and-Forward

Ports
16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)

LED Indicators
Power, Link/Act, 100Mbps

Safety & Emission
FCC, CE

Dimensions (W*D*H)
11.6*7.1*1.7 in. (294*180*44 mm)

Environment
Operating Temperature: 0oC~40oC (32oF~104oF)
Storage Temperature: -40oC~70oC (-40oF~158oF)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Power
100-240VAC, 50/60Hz
