Tp-link Sf1024d24pts Switch Tl-sf1024d
SKU
205919
Brand
MPN
TL-SF1024D
Warranty
1 Year Manufacturer's return to base
Availability
In stock
$89.00
Buy Now And Earn 89 Reward Points!

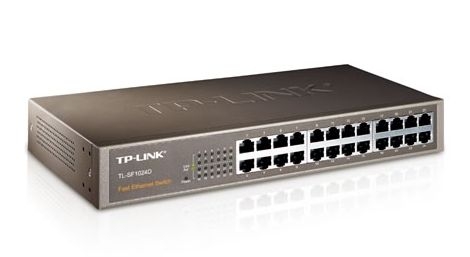

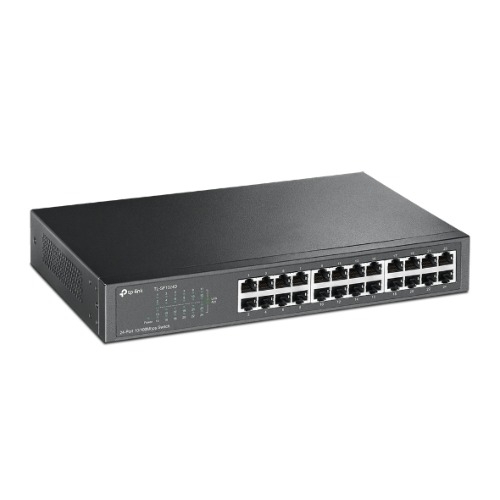

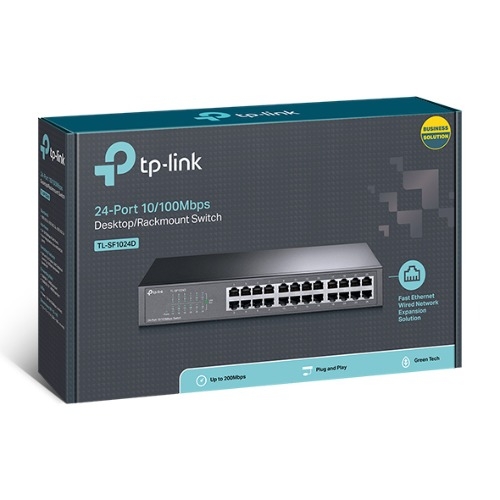

24-Port 10/100Mbps Switch
TL-SF1024D
Highlights:
- 24 10/100M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.
Overview
What This Product Does
The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly without disturbing your family
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP |
| Network Media | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 STP (maximum 100m) ? |
| Interface | 24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) ? |
| Backup Bandwidth | 4.8Gbps |
| External Power Supply | 100-240VAC, 50/60Hz |
| LED Indicator | Power, Link/Act, 100Mbps |
| Dimentions( W x D x H ) | 11.67.11.7 in. (29418044 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | Wire-speed Performance MAC Address Auto-Learning and Auto-aging IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode ? |
| Port Forwarding | 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port ? |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8k |
| OTHERS | |
|---|---|
| Certification | FCC, CE |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Innovative energy-efficient technology saves power up to 75%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
4.8 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
4.8 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly
