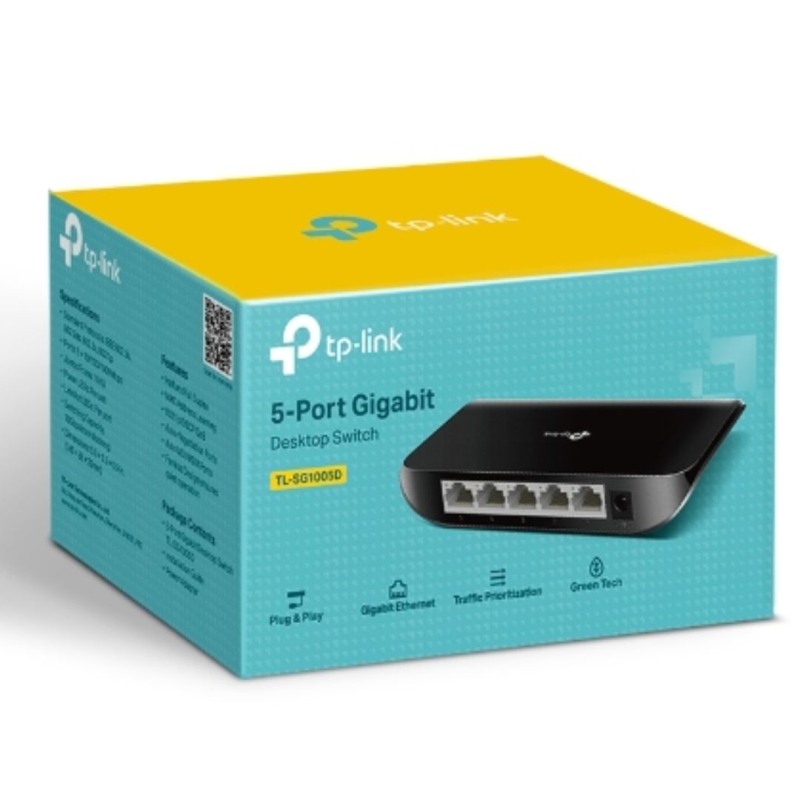

5-port Unmanaged Gigabit Desktop Switch (5 10/100/1000M RJ45 ports)
TL-SG1005D
Spotlight:
* 5-port 10/100/1000M Gigabit Ethernet Desktop Switch
* Supports MAC address self-learning and auto MDI/MDIX.
The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

Features
* Fully Complies with IEEE802.3, 802.3u and 802.3ab standards
* 5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
* Supports IEEE802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
* Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
* Supports MAC address auto-learning and auto-aging
* LED indicators for monitoring power, link, activity
* Plastic case, desktop or wall-mounting design
* External power adapter supply

Specifications
Standards IEEE802.3 , IEEE802.3u , IEEE802.3ab
Topology Star
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex), Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex), Gigabit Ethernet: 2000Mbps (Full Duplex)
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m), 100Base-Tx: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m), 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Number of Ports 5 10/100/1000Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatically learning, automatically Update
Frame Filtering and Forward Rate 10Mbps: 14880pps, 100Mbps: 148800pps, 1000Mbps: 1488000pps
Power Supply Output 9V~ 50-60Hz, 1.2A
Safety & Emission FCC, CE
Dimensions (W?D?H) 7.3?5.7?1.7in.(186?146?44mm)
Environment
Operating Temperature: 0 C~40 C (32 F~104 F)
Storage Temperature: -40 C~70 C (-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~95% non-condensing
