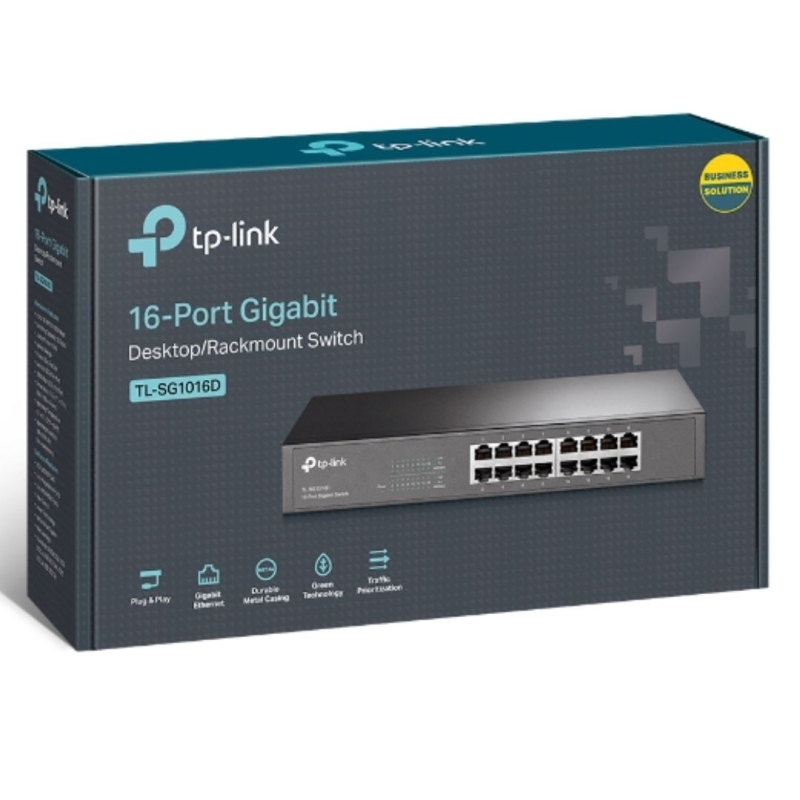

Tp-link Sg1016 16port Switch Gigabit, Rackmountable, Steel Nwtl-tl-sg1016
What This Product Does
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance,
low-cost, easy-to-use, seamless and standard upgrade to improve old network to
1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the
cable type, simply plug and play. Moreover, with the innovative energy-efficient
technology, the TL-SG1016 can save up to 15% of the power consumption and 80% of
the packaging material can be recycled, making it an eco-friendly solution for
your business network.
TP-LINK Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative
energy-efficient technologies that can greatly expand your network capacity with
much less power. It automatically adjusts power consumption according to the
link status to limit the carbon footprint of your network. It also complies with
the EU?S RoHS, prohibiting the use of certain hazardous materials. Besides, 80%
of the packaging material can be recycled.
Innovative energy-efficient technology saves power up to 15%
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture forwards and filters packets at full
wire-speed for maximum throughput
32Gbps Switching Capacity
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward.
Compact size design for desktops, Rackmountable
Plug and Play design simplifies installation
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring
and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring
non-blocking switching architecture, TL-SG1016 forwards and filters packets at
full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance
of large files transfers is improved significantly. And IEEE 802.3x flow control
for Full Duplex mode and backpressure for Half Duplex mode alleviate the
traffic congestion and make The TL-SG1016 work reliably. It?s a perfect choice
to update your network to Gigabit while protecting your previous investment
properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (10, 100, or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance.
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 16 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)
Power Consumption Maximum: 13.3W (220V/50Hz)
Power Supply 100-240VAC, 50/60Hz
PERFORMANCE
Switching Capacity 32Gbps
MAC Address Table 8K
Packet Forwarding Rate 23.8Mpps
Jumbo Frame 10KB
Green Technology Innovative energy-efficient technology saves power up to 15%
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™, Windows 7 or Windows 8, MAC®
OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
100% Data filtering rate eliminates all error packets
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
32Gbps Switching Capacity
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Support the port N-Way Auto-Negotiation, Store and Forward.
Compact size design for desktops, Rackmountable
Plug and Play design simplifies installation
