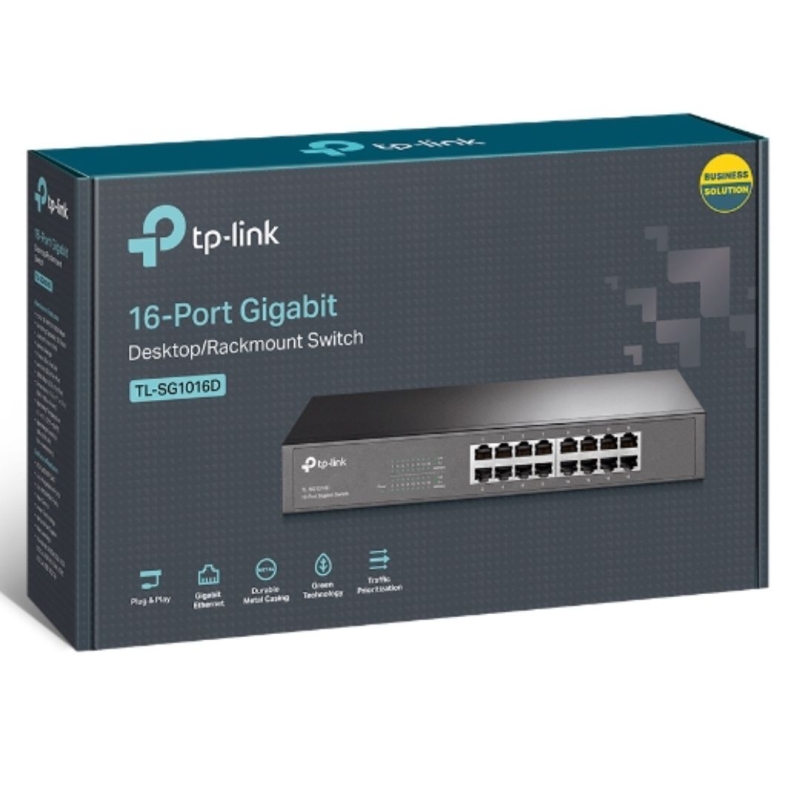

Tp-link Sg1016d 16port Switch Gigabit, Desktop/ Rackmountable Nwtl-sg1016d
16-Port Gigabit Switch
TL-SG1016D
Highlights:
The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the
transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to
worry about the cable type, simply plug and play. Moreover, with the innovative
energy-efficient technology, the TL-SG1016D can save up to 40%* of the power
consumption, making it an eco-friendly solution for your business network.
16 10/100/1000Mbps ports
Innovative energy-efficient technology saves power up to 40%*
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
Overview
What This Product Does The TL-SG1016D 16-Port Gigabit switch provides an easy
way to make the transition to Gigabit Ethernet. All 16 ports support auto
MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover,
with the innovative energy-efficient technology, the TL-SG1016D can save up to
40%* of the power consumption, making it an eco-friendly solution for your
business network.
Gigabit Switch Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly
expands your network capacity, enabling instant large files transferring.
Sopower users in the home, office, workgroup, or creative production environment
can now move large, bandwidth-intensive files faster. Transfer graphics, CGI,
CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative
energy-efficient technologies that can greatly expand your network capacity with
much less power. It automatically adjusts power consumption according to the
link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a
traditional switch will continue to consume considerable amounts of power. The
TL-SG1016D can automatically detect the link status of each port and reduce the
power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation
over their length; this is not the case with most devices as they will use the
same amount of power across the cable regardless of whether it is 10 or 50
meters in length. The TL-SG1016D analyzes the length of the Ethernet cable
connected and adjusts the power usage accordingly, rather than keeping the power
consumption in a conventional solution.
Easy to Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (10, 100, or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance.
Maximum power savings when compared to a TP-LINK conventional switch, the real
saving rate may vary based on the usage condition.
Features
Innovative energy-efficient technology saves power up to 40%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
32Gbps Switching Capacity
10K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Store and forward Switching scheme
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and
1000Mbps hardware.
Desktop design
Plug and Play design simplifies installation
Specifications
Hardware Features
INTERFACE
1610/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX)
NETWORK MEDIA
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
SWITCHING CAPACITY
32Gbps
POWER SUPPLY
Input: 100~240VAC, 50/60Hz Output: 12VDC/2.0A
DIMENTIONS(WDH)
11.6*7.1*1.7 in. (294*180*44 mm)
Software Features
TRANSFER METHOD
Store and Forward
ADVANCED FUNCTIONS
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
Others
CERTIFICATION
FCC, CE, RoHs
PACKAGE CONTENTS
16-Port Gigabit Desktop/Rackmount Switch
Power Adapter
User Guide
ENVIRONMENT
Operating Temperature: 0 ~40 (32 ~104 );
Storage Temperature: -40 ~70 (-40 ~158 );
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Innovative energy-efficient technology saves power up to 15%*
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
