Tp-link Sg1024d 24port Switch Gigabit, Desktop/ Rackmountable Tl-sg1024d

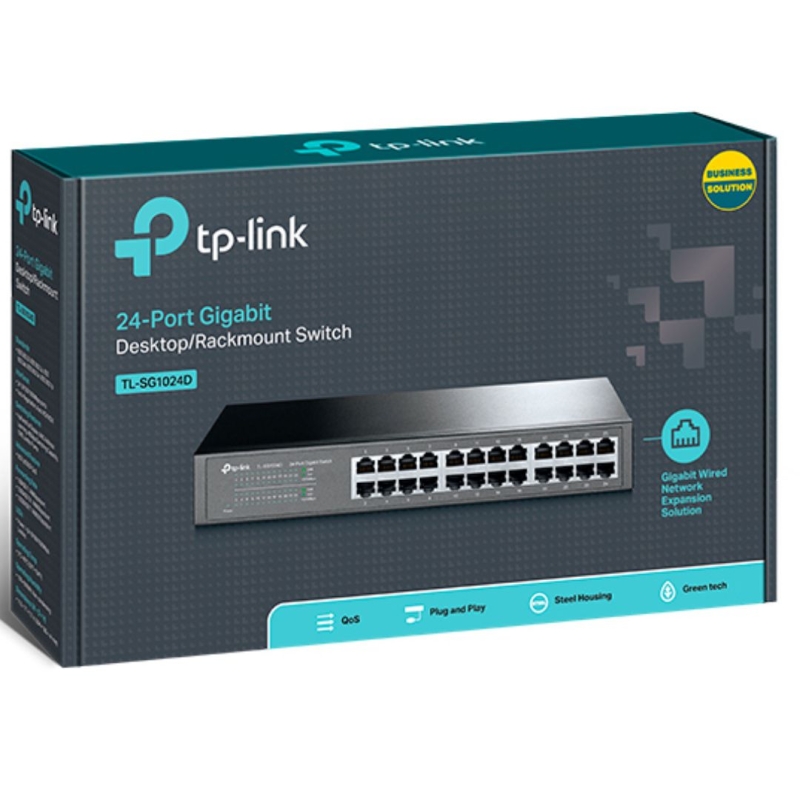

TP-Link TL-SG1024D ? 24-Port Gigabit Desktop/Rackmount Switch
Highlights
24 10/100/1000Mbps ports
Innovative energy-efficient technology saves power up to 40%
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
What This Product Does
The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the
transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to
worry about the cable type, simply plug and play. Moreover, with the innovative
energy-efficient technology, the TL-SG1024D can save up to 40%* of the power
consumption, making it an eco-friendly solution for your business network.
Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network
capacity, enabling instant large files transferring. So, power users in the
home, office, workgroup, or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative
energy-efficient technologies that can greatly expand your network capacity with
much less power. It automatically adjusts power consumption according to the
link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a
traditional switch will continue to consume considerable amounts of power. The
TL-SG1024D can automatically detect the link status of each port and reduce the
power consumption of ports that are idle.
Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation
over their length; this is not the case with most devices as they will use the
same amount of power across the cable regardless of whether it is 10 or 50
meters in length. The TL-SG1024D analyzes the length of the Ethernet cable
connected and adjusts the power usage accordingly, rather than keeping the power
consumption in a conventional solution.
Easy to Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance.
Innovative energy-efficient technology saves power up to 40%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
48Gbps Switching Capacity
10K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Store and forward Switching scheme
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and
1000Mbps hardware.
Desktop and Rack-mountable design
Plug and Play design simplifies installation
HARDWARE FEATURES
Interface 24 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX)
Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
Switching Capacity 48Gbps
External Power Supply 100-240VAC, 50/60Hz
Fan Quantity Fanless
Dimensions ( W x D x H ) 11.6*7.1*1.7 in. (294*180*44 mm)
SOFTWARE FEATURES
Transfer Method Store and Forward
Advanced Functions 802.3X Flow Control, Back Pressure
Auto-Uplink Every Port
OTHERS
Certification FCC, CE, RoHS
Package Contents 24-Port Gigabit Desktop/Rackmount Switch
Power Cord
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7,
MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Innovative energy-efficient technology saves power up to 25%
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
