Tp-link Sg108 8port Switch Desktop, Gigabit, Steel Case Tl-sg108

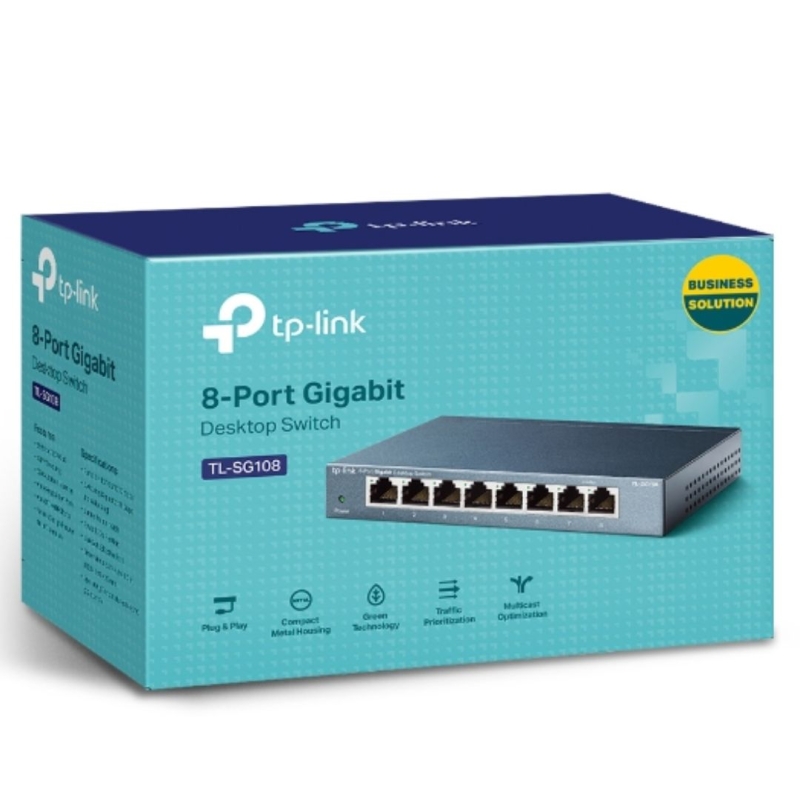

TP-Link TL-SG108 ? 8-Port 10/100/1000Mbps Desktop Switch
Highlights
8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) function
Plug and play ,no configuration needed
What This Product Does
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way
to make the transition to gigabit Ethernet. Increase the speed of your network
server and backbone connections, or make gigabit to the desktop a reality.
Moreover, TL-SG108 adopts lower power consumption design. With the innovative
energy-efficient technology, the TL-SG108 can save up to 72% of the power
consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network
capacity, enabling instant large files transferring. So,power users in the home,
office, workgroup, or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This
new generation TL-SG108 features the latest innovative energy-efficient
technologies that can greatly expand your network capacity with much less power.
It automatically adjusts power consumption according to the link status and
cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a
traditional switch will continue to consume considerable amounts of power. The
TL-SG108 can automatically detect the link status of each port and reduce the
power consumption of ports that are idle, resulting in up to an 72% reduction in
power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation
over their length; this is not the case with most devices as they will use the
same amount of power across the cable regardless of the length.
Easy to Use
The auto features of this gigabit switch make installation plug and play and
hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for
crossover cables. Auto-negotiation on each port senses the link speed of a
network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for
compatibility and optimal performance.
Innovative energy-efficient technology saves power up to 72%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half
Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) function
Non-blocking switching architecture that forwards and filters packets at full
wire-speed for maximum throughput
9K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and
1000Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols IEEE 802.3/802.3u/ 802.3ab/ 802.3x
CSMA/CD
Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Fan Quantity Fanless
LED Indicator System Power
Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features Green Technology,saving power up to 72%
802.3X Flow Control
Supports QoS (IEEE802.1P)
Transfer Method Store and Forward
OTHERS
Certification CE, FCC ,RoHS
Package Contents 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
User Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7,
Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0?C~40?C (32?F~104?F)
Storage Temperature: -40?C~70?C (-40?F~158?F)
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5%~90% non-condensing
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Steel design, desktop or wall-mounting design
Supports QoS (IEEE 802.1p) function
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
12K Jumbo frame improves performance of large data transfers
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
Fanless design ensures quiet operation
Plug and Play design simplifies installation
