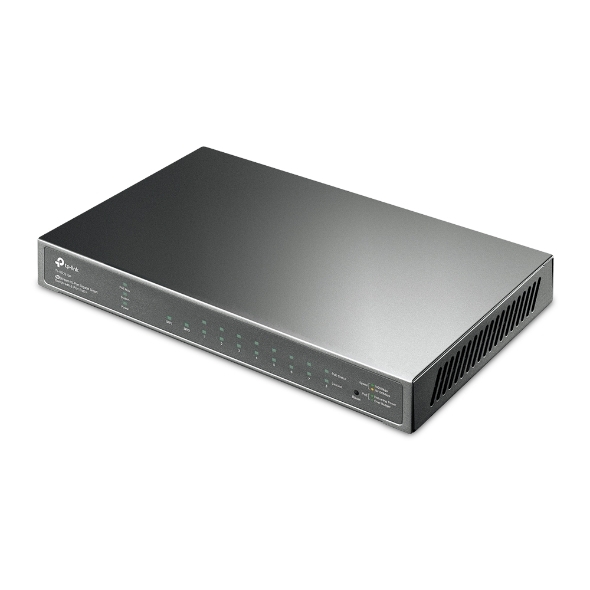

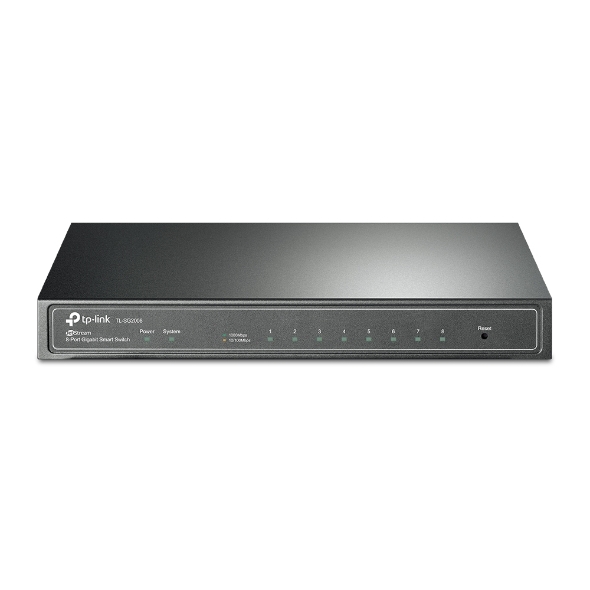

8-Port Gigabit Smart Switch

TL-SG2008



• Gigabit Ethernet connections on all ports provide full speed of data transferring
• Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
• L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
• WEB/CLI managed modes, SNMP, RMON bring abundant management features
• Innovative energy-efficient technology saves up to 65% of power consumption



What This Product Does



TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.



TP-LINKs 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. Whats more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.



Advanced QoS Features



To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.



Abundant Layer 2 Features



For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



Enterprise Level Management Features



TL-SG2008 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.



Features



Layer 2 Features





Quality of Service





Security Strategies





Management





Specifications



HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface	8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity	Fanless
Dimensions (W X D X H)	8.2* 4.9* 1.0 in. (209* 126* 26mm)
Power Consumption	Maximum: 6.42W (220V/50Hz)
Power Supply	100~240VAC, 50/60Hz

PERFORMANCE
Bandwidth/Backplane	16Gbps
MAC Address Table	8k
Packet Forwarding Rate	11.9Mpps
Jumbo Frame	9216 Bytes

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN
L2 Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN	Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List	L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based
Security	SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control
Management	Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2008 Power Adapter Quick Installation Guide Resource CD Rubber Feet
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0~40 (32~104); Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
