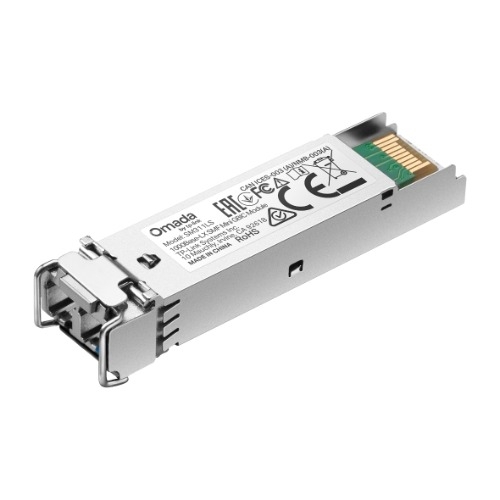

Tp-link Sm311lssfp Moduile Single Model Minigbic Module Nwtl-sm311ls
TP-Link Gigabit SFP MiniGBIC module, Single-mode, LC interface, Up to 10km
distance
Spotlight:
Single-mode MiniGBIC module.
Applied to TL-SG3109/3216/3224, TL-SL3428/3452, TL-SG2109WEB/2216WEB/2224WEB,
TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351.
Description:
The TL-SM311 series Fiber Module Cards are introduced for extending transfer
distance, attached to our managed/web smart switches. They can extend the
distance to several kilometers even tens of kilometers which can basically
satisfy the distance requirement of LAN. Users can choose whether and which
items to use the fiber modules according to the demand in order to lower cost.
Features:
Support Full-Duplex
Plug-and-Play
LED indicators show the operation state of the fiber module
supports Pull-or-Plug with power on switches
Power: internal power from switches
Suitable Switches: TL-SG3109/3216/3224, TL-SL3428/3452,
TL-SG2109WEB/2216WEB/2224WEB, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351
and the coming gigabit switches
Specifications:
Standards and Protocols
IEEE 802.3z, CSMA/CD, TCP/IP
Cable
Single-mode Fiber
Fiber Type
9/125 um Single-mode
Max. Cable Length
10km
Data Rate
1.25Gbps
TypePort
LC
Wave Length
1310nm
Power Support
3.3V
Safety & Emission
FCC, CE
Environment
Operating Temperature: 0~70 (32~158)
Storage Temperature: -40~80 (-40~176)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L
