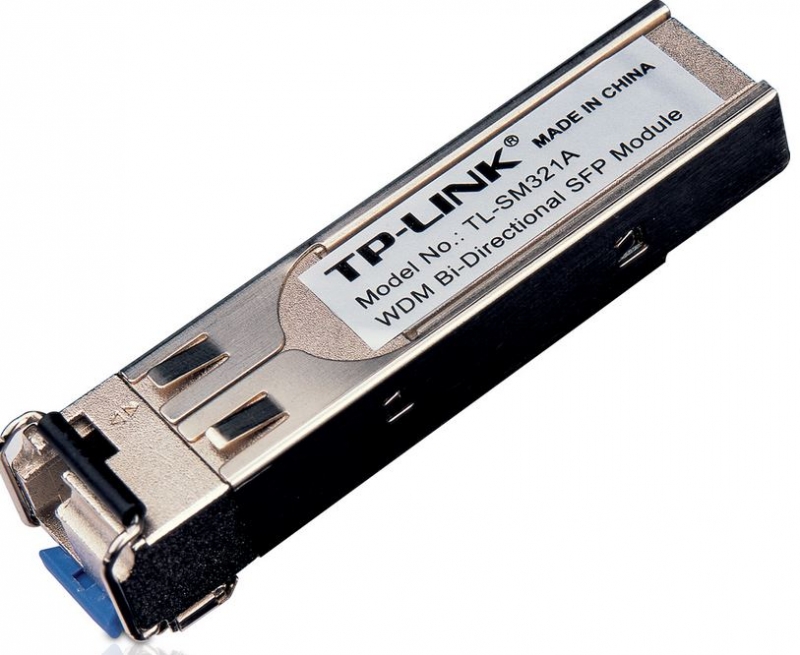

Tp-link Sm321a Wdm Sfp Module Wdm Bi-directional Sfp Module Tl-sm321a

SKU
232417
Brand
MPN
TL-SM321A
Warranty
1 Year Manufacturer's return to base
Availability
In stock
Freight Estimate
$43.00
Buy Now And Earn 43 Reward Points!

1000Base-BX WDM Bi-Directional SFP ModuleTL-SM321A

  • WDM Bi-Directional SFP Module
  • Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving

What This Product Does

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
  • Supports WDM Bi-Directional technology, using a single strand of fiber
  • TX: 1550nm / RX: 1310nm
  • Internal +3.3V Power Supply
  • In pairs with TL-SM321B
  • Plug-and-Play
  • Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P, TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351 and MC200L
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP

Wave Length TX: 1550nm / RX: 1310nm

Power Supply 3.3V

Safety & Emission FCC, CE

Cabel Single-mode Fiber

Fiber Type 9/125 μm Single-mode
Max. Cable Length 10km
Data Rate 1.25Gbps

Port Type LC/UPC
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
WDM Bi-Directional SFP Module
Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
