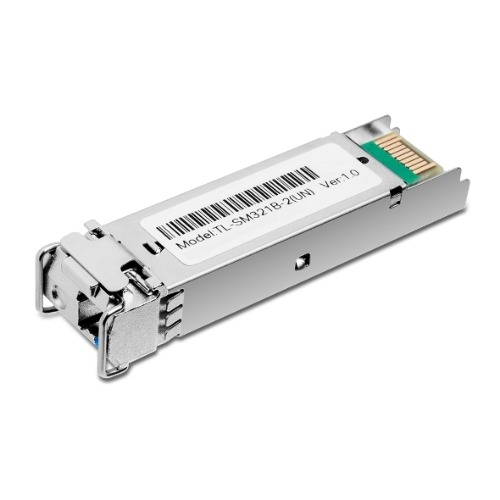

Tp-link Sm321b Wdm Spf Module Wdm Bi-directional Sfp Module Nwtl-sm321b
1000Base-BX WDM Bi-Directional SFP Module
TL-SM321B
Highlights:
WDM Bi-Directional SFP Module
Supports WDM Bi-Directional technology, using a single strand of fiber, cost
saving
What This Product Does
TP-LINKs TL-SM321B adopts the latest standard 1000Base-BX, transmission over a
single strand of fiber, with one different wavelength going in each direction.
You can extend the network distance up to 10Km with TP-LINKs Routers, Switches,
Media Converters to provide high speed and stability.
Features:
Supports WDM Bi-Directional technology, using a single strand of fiber
TX: 1310nm / RX: 1550nm
Internal +3.3V Power Supply
In pairs with TL-SM321A
Plug-and-Play
Suitable Products: TL-SG5428, TL-SL5428E, TL-SG3210/3216/3424/3424P,
TL-SL3428/3452, TL-SG2216/2424, TL-SL2210WEB/2218WEB/2428WEB/2452WEB, TL-SL1351
and MC200L
Specifications:
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, CSMA/CD, TCP/IP
Power Supply 3.3V
Cabel Single-mode Fiber
Fyber Type 9/125 um Single-mode
Max. Cable Length 10km
Data Rate 1.25Gbps
Port Type LC
Wave Length TX: 1310nm / RX: 1550nm
Safety & Emission FCC, CE
Environment Operating Temperature: 0~70 (32~158)
Storage Temperature: -40~80 (-40~176)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
