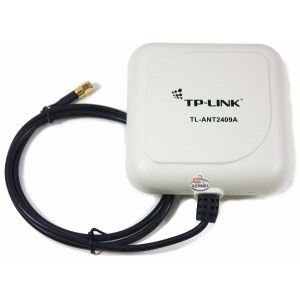

Tp-link Tl-ant2409a 2.4ghz 9dbi Outdoor Yagi-directional Antenna
No Longer Available
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.
Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required.
Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
- 9dBi directional operation provides extended point to point connection or indoor and outdoor area coverage
- Features 100cm CFD-200 low loss cable for flexible deployment
- RP-SMA Female connector, works with most of access points / wireless routers
- Provides easy installation mounting kits
- Compliant with 802.11n/b/g (2.4GHz)
- Frequency: 2.4GHz
- Gain: 9dBi
- VSWR (MAX.): 1.5:1
- HPBW/H: 60°
- HPBW/V: 76°
- Polarization: Linear; Vertical
- Type: Directional
- Connector Type: RP-SMA Female
- Extended Cable/Length: CFD-200; 100cm
- Mounting: Pole Mount/Wall Mount
- Application: Outdoor
- Approximate Range at 1/11/54Mbps: 1.77km/1km/140m
- Operating Temp. -20°C ~ +65°C
- Storage Temp. -30°C ~ +75°C
- Optional Accessory: TL-ANT24EC3S, TL-ANT24EC5S
-
Package
Contents:
- 9dBi Panel Directional Antenna
- Installation mounting kits
- User Guide
Details:
Directional Antenna TL-ANT2409A operates in the 2.4GHz band and provides 9dBi directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the RP-SMA female connector guaranteeing wider compatibility with most of the wireless equipments.
Enjoy the benefits of wireless connectivity at greater distances and throughput throughout your indoor wireless zone. No configuration or installation software required.
Easy To Use
Installation of the TL-ANT2409A is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
Specifications:
- Frequency: 2.4GHz
- Gain: 9dBi
- VSWR (MAX.): 1.5:1
- HPBW/H: 60°
- HPBW/V: 76°
- Polarization: Linear; Vertical
- Type: Directional
- Connector Type: RP-SMA Female
- Extended Cable/Length: CFD-200; 100cm
- Mounting: Pole Mount/Wall Mount
- Application: Outdoor
- Approximate Range at 1/11/54Mbps: 1.77km/1km/140m
- Operating Temp. -20°C ~ +65°C
- Storage Temp. -30°C ~ +75°C
- Optional Accessory: TL-ANT24EC3S, TL-ANT24EC5S
- Package Contents:
- 9dBi Panel Directional Antenna
- Installation mounting kits
- User Guide
