HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Power Supply	External Power Adapter(Output: 9VDC/0.6A)
Power Consumption	Maximum: 9.3 W
Dimensions ( W x D x H )	11.3 x 4.4 x 1.0 in. (286*111.7*25.4 mm)

PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.81Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1Mb
Jumbo Frame	9KB

SOFTWARE FEATURES
Quality of Service	Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward

OTHERS
Certification	FCC, CE, RoHS

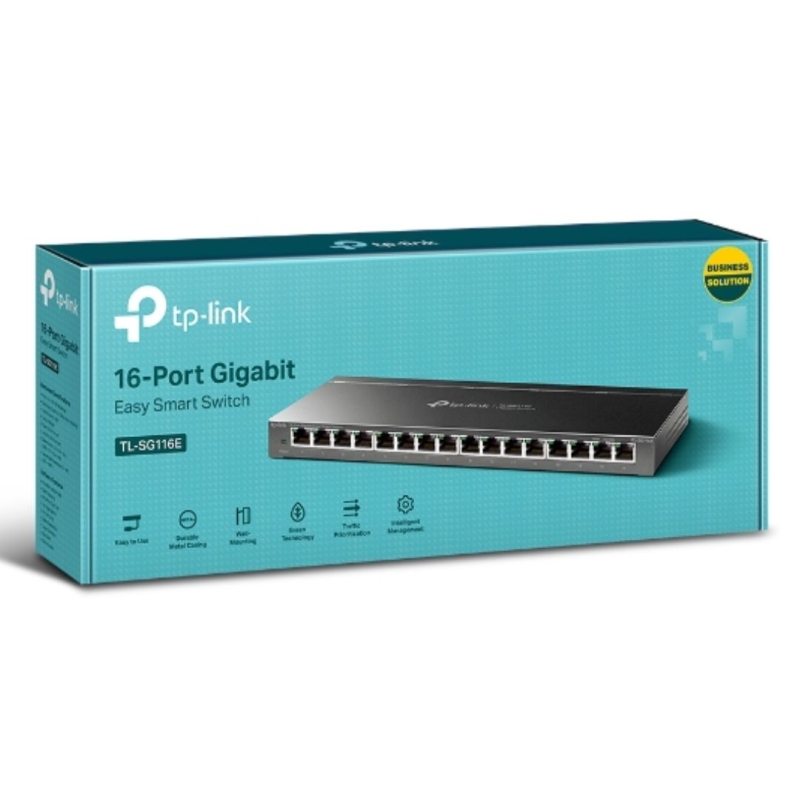

Package Contents	TL-SG116E Power Cord Installation Guide Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

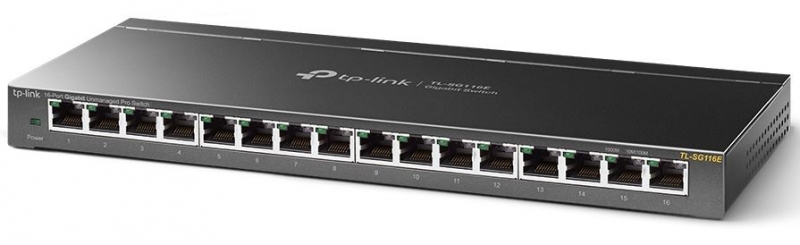

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

16 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter(Output: 9VDC/0.6A)
Power Consumption Maximum: 9.27W (220V/50Hz)
Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm)
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB

SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
