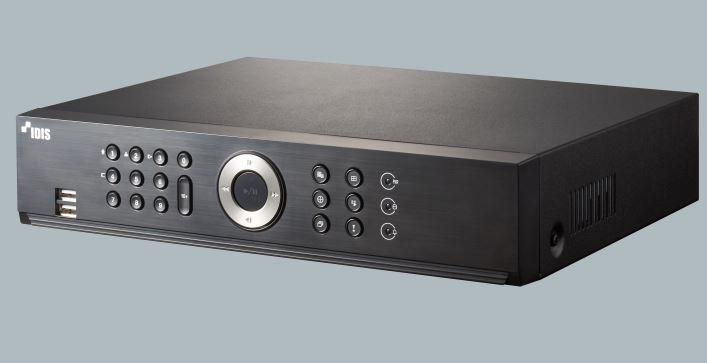

IDIS ANALOG-HD 8CH H.265 MULTI-STANDARD DVR 3YR TR-2508-2TB
SKU
403661
Brand
Warranty
Standard Manufacturer's Warranty
$751.00
Buy Now And Earn 751 Reward Points!
DirectCX 8channel H.265 Recorder
/ NDAA Compliant
- Supports Multi Standard Analog Camera
- Up to 240ips Full HD recording
- H.265 encoding , Intelligent Codec Support
- Up to 5MP resolution support
- UHD Display with HDMI output
- Full HD Display with HDMI and VGA output
- Long transmission distance over coax cable
- Supports OSD control over Coax
- Expandable up to 12TB using 2 SATA interfaces
- Supports one click network configuration through FEN service
| Video | |
| Video Inputs | 8 BNC |
| Supported Camera | HD-TVI : 5MP, 4MP, 3MP, 1080P, 720P AHD : 5MP, 4MP, 3MP, 1080P, 720P CVBS : NTSC / PAL |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1080, 1280 x 1024 VGA : 1920 x 1080, 1280 x 1024 |
| Display Speed | Up to 240ips |
| Digital Zoom | x2 ~ x7 |
| Recording | |
| Recording Resolution | 2560x1920, 2560x1440, 1920x1536, 1920x1080, 1280x720, 960x576, 960x480, 720x576, 720x480, 960x288, 960x240, 640x360, 720x288, 720x240, 480x288, 480x240, 360x288, 360x240 |
| Video Compression | H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Alarm in, Motion detection, Video loss, Text-in |
| Playback | |
| Performance | 8ch synchronous playback |
| Search Mode | Time-lapse, Event log, Text-in |
| Digital Zoom | x2 ~ x7 |
| Storage | |
| HDD | SATA x 2 |
| Total Capacity | The maximum HDD capacity is updated as new HDD models become available. For the most recent information, please check here |
| Network | |
| Client Connection | Fast Ethernet x1 |
| Transmission Speed | 30ips@Full HD per channel, same as recording stream |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push notification (IDIS Mobile) |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 8 In / 1 Relay out |
| Alarm Reset In | - |
| Serial Interface | RS232 / RS485(Terminal Block) |
| USB | USB 2.0 x 2(Front x 2) |
| User Interface | Mouse, IR Remote Control, Front Button, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | Adaptor Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A |
| Power Consumption | 12V=, 1.84A, 22.1W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Unit Dimensions (W x H x D) | 300mm x 67mm x 243.6mm (11.8" x 2.6 x 9.6") |
| Unit Weight | 3.0 kg (with 2 2TB HDD) |
