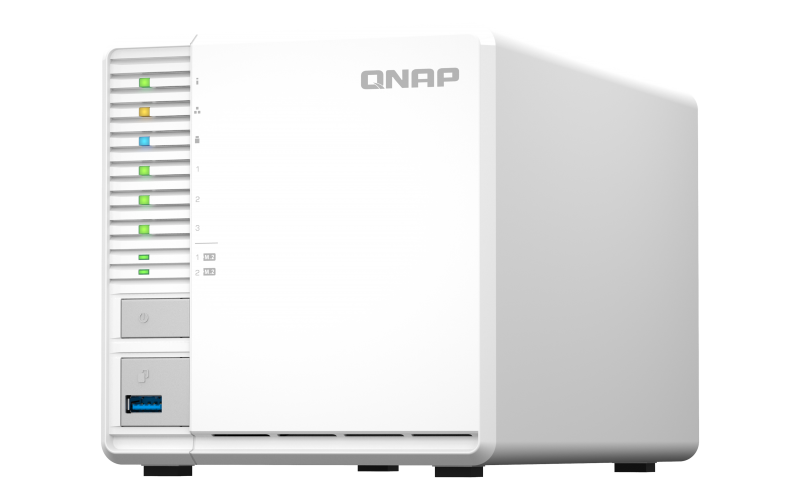

QNAP TS-364-4G 3-Bay NAS, Intel Celeron N5105/N5095 4-core, 2.9 GHz, 4GB SODIMM DDR4 (1 x 4GB, 2 DIMMS, max 16GB)
SKU
380176
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
QUICK OVERVIEW
, 3x2.5"/3.5",2xM.2 PCIe Gen3, HDMI, 2 YR wty
CPU | Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz |
CPU Architecture | 64-bit x86 |
Graphic Processors | Intel® UHD Graphics |
Floating Point Unit | |
Encryption Engine | (AES-NI) |
Hardware-accelerated Transcoding | |
System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) |
Maximum Memory | 16 GB (2 x 8 GB) |
Memory Slot | 2 x SO-DIMM DDR4
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
|
Flash Memory | 5GB (Dual boot OS protection) |
Drive Bay | 3 x 3.5-inch SATA 6Gb/s, 3Gb/s |
Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives An optional 2.5" drive tray base (TRAY-25-NK-BLK03) is needed to install a 2.5" SSD/HDD
|
Hot-swappable | |
M.2 Slot | 2 x M.2 2280 PCIe Gen 3 x2 slots |
SSD Cache Acceleration Support | |
2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1 |
Wake on LAN (WOL) | |
Jumbo Frame | |
USB 3.2 Gen 1 port | 1 |
USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A |
HDMI Output | 1, HDMI 1.4b (up to 4096 x 2160 @ 30Hz) |
Form Factor | Tower |
LED Indicators | System Status, LAN, USB, HDD1~3, M.2 SSD1~2 |
Buttons | Power, Reset, USB Copy |
Dimensions (HxWxD) | 5.59 × 5.91 × 10.24 inch |
Weight (Net) | 3.62 lbs |
Operating temperature | 0 - 40 °C (32°F - 104°F) |
Storage Temperature | -20 - 70°C (-4°F - 158°F) |
Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
Power Supply Unit | 65W adapter, 100 - 240V |
Power Consumption: Operating Mode, Typical | 32.8 W
Tested with drives fully populated.
|
Fan | 1 x 92mm, 12VDC |
System Warning | Buzzer |
Kensington Security Slot | |
Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
