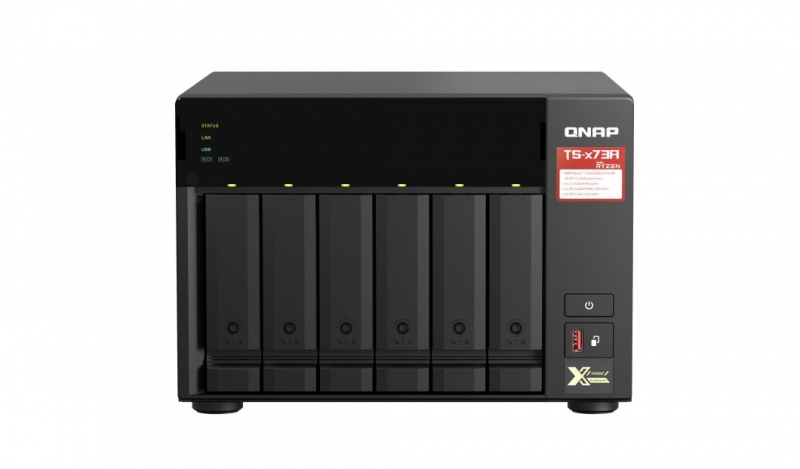

Qnap Ts-673A-8G 6 Bay Nas AMD Ryzen™ Embedded V1500B Quad-core 2.2 GHz 8G DDR4 2xM.2 2280 PCIe Gen3 X1 Slots 2x2.5 GEl 3xUSB3.2 Hot-swappable 3YR Wty TS-673A-8G
SKU
377231
Brand
MPN
TS-673A-8G
Warranty
Standard Manufacturer's Warranty
$2,264.00
Buy Now And Earn 2264 Reward Points!
QUICK OVERVIEW
3xUSB3.2 Hot-swappable 3YR WTY
QNAP TS-673A-8G 6 Bay NAS AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz 8G DDR4 2xM.2 2280 PCIe Gen3 x1 slots 2x2.5 GEl 3xUSB3.2 Hot-swappable 3YR WTY
AMD Ryzen™ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibility
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-673A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-673A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
System Memory 8 GB SO-DIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4 Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x1 slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
Jumbo Frame
CIe Slot 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps
Operating temperature 0 - 40 °C (32°F - 104°F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 21.891 W
Power Consumption: Operating Mode, Typical 45.898 W
Fan System fan: 2 x 92mm CPU fan: 1 x 60mm
3 years warranty
AMD Ryzen™ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibility
Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-673A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-673A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
CPU AMD Ryzen™ Embedded V1500B quad-core 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
System Memory 8 GB SO-DIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SO-DIMM DDR4 Support ECC memory
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Hot-swappable
M.2 SSD Slot 2 x M.2 2280 PCIe Gen3 x1 slots
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2
Jumbo Frame
CIe Slot 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps
Operating temperature 0 - 40 °C (32°F - 104°F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode 21.891 W
Power Consumption: Operating Mode, Typical 45.898 W
Fan System fan: 2 x 92mm CPU fan: 1 x 60mm
3 years warranty
TS-673A-8G
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Optional via a PCIe adapter |
| Floating Point Unit | |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe adapter |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 Support ECC memory For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable |
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
|
| M.2 Slot | 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. |
| SSD Cache Acceleration Support | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a PCIe adapter |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| Wake on LAN (WOL) | |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x4 |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 1 5Gbps |
| IR Sensor | (QNAP RM-IR004) |
| HDMI Output | Optional via a PCIe adapter |
| Form Factor | Tower |
| LED Indicators | Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2 |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 188.2 × 264.3 × 280.8 mm |
| Weight (Net) | 5.78 kg |
| Weight (Gross) | 7.35 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 250W, 100-240V AC, 50-60Hz, 3.5A |
| Power Consumption: HDD Sleep Mode | 21.891 W |
| Power Consumption: Operating Mode, Typical | 45.898 W
Tested with drives fully populated.
|
| Fan | System fan: 2 x 92mm CPU fan: 1 x 60mm |
BAQN-TS-673A-8G
