CRESTRON MULTISURFACE ANGLE MOUNT FOR TSW-770 AND TSW-1070, BLACK TSW-770/1070-MSMK-ANG-B-S
SKU
404429
Brand
MPN
TSW-770/1070-MSMK-ANG-B-S
Warranty
Standard Manufacturer's Warranty
$84.00
Buy Now And Earn 84 Reward Points!

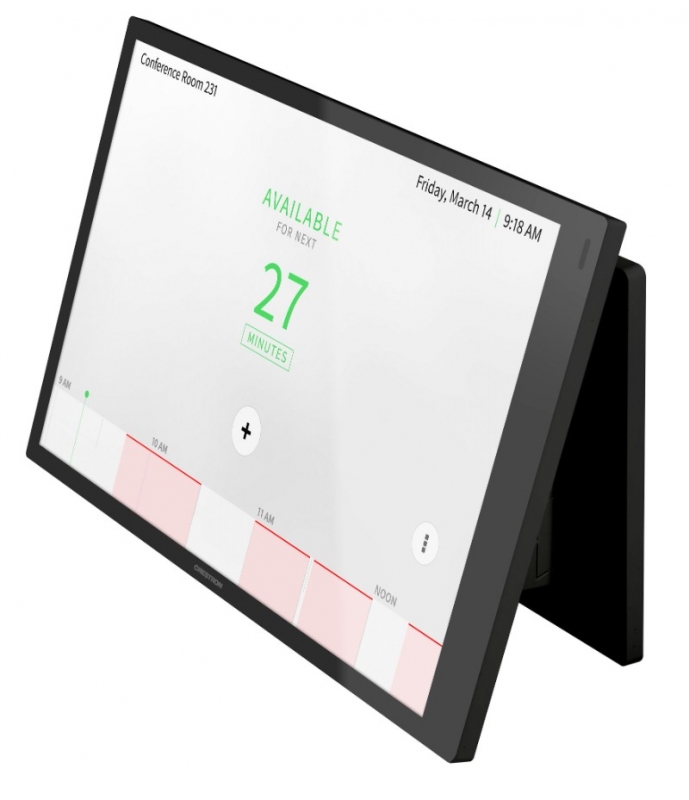

Allows a TSW-770, TSS-770, TSW-1070, or TSS-1070 series touch screen to be mounted to a glass wall or other smooth, flat surface. Also can be mounted into a wall or over an electrical box. Ideal for mounting near the entrance to a meeting space for room scheduling applications. Provides a 20° upward tilt angle.
| Construction | |
| Housing | Plastic, smooth black or white finish |
| Surface Mounting | Peel-and-stick adhesive mount to glass or other flat, smooth surface |
| Wall Mounting | Attaches to a wall or to a 2-gang or 3-gang US electrical box, horizontally‑oriented 1-gang US electrical box, 2-gang European electrical box, or 2-gang UK electrical box |
| Dimensions | |
| Surface mount without touch screen | Height: 4.45 in. (113 mm); Width: 5.96 in. (151 mm); Depth: 2.50 in. (63 mm) |
| Wall mount without touch screen | Height: 5.11 in. (130 mm); Width: 6.71 in. (170 mm); Depth: 2.77 in. (70 mm) |
| Surface mount with TSW‑770 | Height: 4.76 in. (121 mm); Width: 6.80 in. (173 mm); Depth: 3.07 in. (78 mm) |
| Wall mount with TSW‑770 installed | Height: 5.11 in. (130 mm); Width: 6.80 in. (173 mm); Depth: 3.35 in. (85 mm) |
| Surface mount with TSW‑1070 installed | Height: 5.60 in. (142 mm); Width: 9.46 in. (240 mm); Depth: 3.38 in. (86 mm) |
| Wall mount with TSW‑1070 installed | Height: 6.22 in. (158 mm); Width: 9.46 in. (240 mm); Depth: 3.66 in. (93 mm) |
