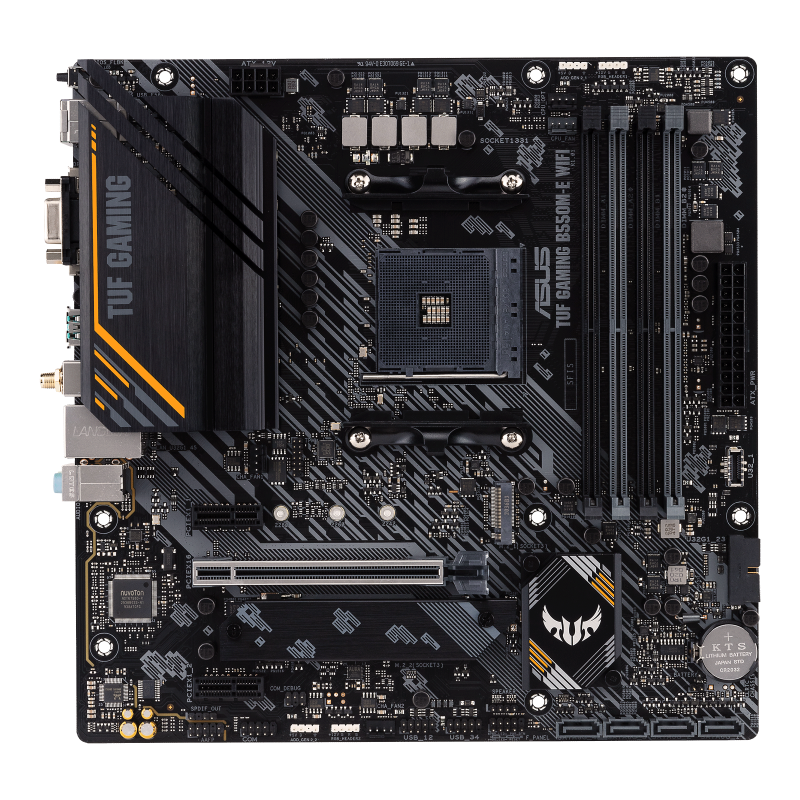

Asus TUF GAMING B550M-E WIFI AMD B550 (Ryzen AM4) micro ATX Gaming Motherboard with PCIe 4.0, dual M.2

SKU
374877
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/
4000 G-Series/ 3000 Series Desktop Processors*

*Refer to www.asus.com for CPU support list.

Chipset

AMD B550 Chipset

Memory

 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

* ECC memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.2

1 x D-Sub

1 x HDMI™ 2.1 (4K@60Hz)

* Graphics specifications may vary between CPU types.

Expansion Slots



AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 slots

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Ethernet

1 x Realtek 1Gb Ethernet

Wireless & Bluetooth

Intel® Wi-Fi 6 AX200

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports 2.4/5GHz Dual-Band

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports PCIe interface

Bluetooth v5.1*

* Bluetooth v5.1 function will be ready in Windows® 10 build 19041 or later.

USB

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 connector (supports USB Type C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

 Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x D-Sub port

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x PS/2 Keyboard/Mouse combo port

Intrernal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS TUF PROTECTION

- DIGI+ VRM

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- TUF LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software

Armoury Crate

- AURA Creator

- AURA Sync

AI Suite 3

- Performance and Power Saving Utility

  TurboV EVO

  EPU

  DIGI+ VRM

  Fan Xpert 2+

- EZ update

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyASUS

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
