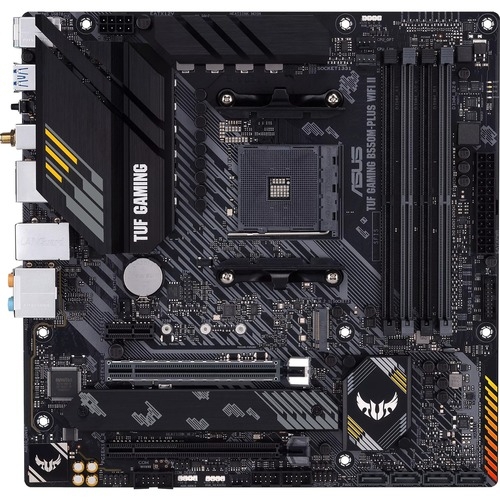

ASUS TUF GAMING B550M-PLUS WIFI II Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9 PRO Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/a TUF
No Longer Available
TUF GAMING B550M-PLUS WIFI II Desktop Motherboard - AMD B550 Chipset - Socket AM4 - Micro ATX - Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9 PRO Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C®, BIOS FlashBack™, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Ultrafast connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C® support
- Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
DURABLE. STABLE. RELIABLE.
TUF Gaming B550M-Plus WIFI II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-Plus WIFI II is the perfect foundation for your next high-core-count battle rig.
POWER DESIGN | DRMOS
The onboard VRM of TUF Gaming B550M-Plus WIFI II utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into a single package, delivering the power and efficiency that AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors demand.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
BUILD WITH CONFIDENCE
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
IMMERSIVE GAMING
TUF Gaming B550M-Plus WIFI II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- With 2 USB 2.0 ports, transfer several documents without error
- Compatible Ryzen 3 processor lets you perform all your computational tasks at a swift pace
| Audio Channels | 7.1 |
| Brand Compatibility | AMD |
| Onboard Video | CPU Dependent Video |
| Form Factor | Micro ATX |
| Width | 244 mm |
| Depth | 244 mm |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 3 |
| Number of PCI Express x16 Slots | 2 |
| Total Number of PCI Express Slots | 3 |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 4333 MHz |
| 4000 MHz | |
| 3866 MHz | |
| 3733 MHz | |
| 3600 MHz | |
| 3466 MHz | |
| 3400 MHz | |
| 3333 MHz | |
| 3200 MHz | |
| 3000 MHz | |
| 2933 MHz | |
| 2800 MHz | |
| 2666 MHz | |
| 2400 MHz | |
| 2133 MHz | |
| 4600 MHz | |
| 4466 MHz | |
| 4400 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4866 MHz | |
| 4800 MHz | |
| 4200 MHz |
| RAID Levels | 1 |
| 0 | |
| 10 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.2 Ports | 2 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | TUF GAMING B550M-PLUS WIFI II |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | GAMING B550M-PLUS WIFI II |
| Product Name | GAMING B550M-PLUS WIFI II Gaming Desktop Motherboard |
| Brand Name | TUF |
| S/PDIF | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 1 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Processor Supported | Ryzen 7 |
| Ryzen 5 Pro | |
| Ryzen 5 | |
| Ryzen 3 PRO | |
| Ryzen 3 | |
| Ryzen 9 PRO | |
| Ryzen 9 | |
| Ryzen 7 PRO | |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
