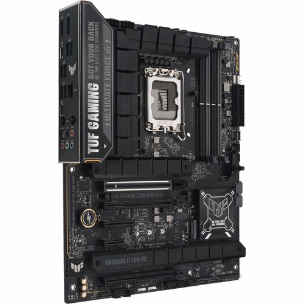

ASUS TUF GAMING Z790-PRO WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR4 SDRAM, DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - I TUF
TUF GAMING Z790-PRO WIFI Gaming Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR4 SDRAM, DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - HDMI - DisplayPort - 4 x SATA Interfaces
TUF GAMING Z790-PRO WIFI combines the latest Intel®processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.
AI Overclocking
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation
ROCK-SOLID PERFORMANCEWith upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storage, the TUF GAMING Z790-PRO WIFI is the perfect foundation for your next Intel battle rig.
16+1+1 power stages are each rated to handle up to 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
Learn more about TUF Gaming ecosystem
IMMERSIVE GAMINGTUF GAMING Z790 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- RAID supported levels provide data reliability and fault tolerance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Wireless support reduces the number of cables required to connect peripherals
- Compatible Core processor lets you perform all your computational tasks at a swift pace
| Audio Channels | 7.1 |
| Brand Compatibility | Intel |
| Onboard Video | CPU Dependent Video |
| Form Factor | ATX |
| Width | 304.8 mm |
| Depth | 243.8 mm |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of M.2 Interfaces | 4 |
| RAID Levels | 0 |
| 1 | |
| 10 | |
| 5 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.3 |
| 2.5Gigabit Ethernet | Yes |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| DDR4 SDRAM | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| UDIMM | |
| Memory Speed Supported | 7000 MHz |
| 6600 MHz | |
| 7800 MHz | |
| 7600 MHz | |
| 7400 MHz | |
| 5000 MHz | |
| 5200 MHz | |
| 5400 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 7200 MHz | |
| 6800 MHz |
| Product Type | Gaming Desktop Motherboard |
| Manufacturer Part Number | TUFGAMINGZ790PROWIFI |
| Manufacturer Website Address | http://www.asus.com/au |
| Manufacturer | ASUS Computer International |
| Product Model | GAMING Z790-PRO WIFI |
| Product Name | GAMING Z790-PRO WIFI Gaming Desktop Motherboard |
| Brand Name | TUF |
| Number of PCI Express x1 Slots | 1 |
| Number of Total Expansion Slots | 5 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express 3.0 | |
| PCI Express 5.0 | |
| Total Number of PCI Express Slots | 5 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Processor Supported | Core |
| Pentium Gold | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Processor Generation Supported | 13th Gen |
| 14th Gen | |
| 12th Gen | |
| 13th Gen | |
| 12th Gen | |
| 14th Gen |
