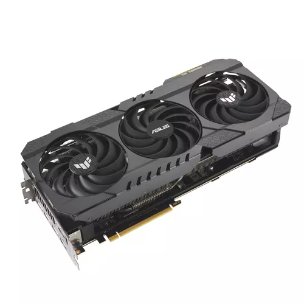

ASUS TUF NVIDIA GeForce RTX 4090 Graphic Card - 24 GB GDDR6X - Full-height - 2.60 GHz Boost Clock - 384 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI TUF-RTX4090-O24G-OG-GAMING
TUF NVIDIA GeForce RTX 4090 Graphic Card - 24 GB GDDR6X - Full-height - 2.60 GHz Boost Clock - 384 bit Bus Width - PCI Express 4.0 - DisplayPort - HDMI
AXIAL-TECH UPGRADES | Air Superiority
TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
NEW DIRECTION | Well-maintained Formation
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
3.2-SLOT DESIGN | Phase That Blaze
A generously sized heatsink efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.
MILITARY-GRADE 20K CAPACITORS | Resilient Squadron
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
VENTED EXOSKELETON | Stay Frosty
Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.
AUTO-EXTREME TECHNOLOGY| RELIABILITY BOOSTA
uto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
AURA SYNC | Light 'em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.
- Cost-efficient NVIDIA GeForce provides effective Blu-ray playback acceleration and great gaming experience
- Built-in low-power fan keeps the board cool and ensures a long-lasting usability
- Built-in 24 GB memory to hold textures, frame buffer, shadow maps, bump maps, and lightning info that allows the GPU to perform rapid rendering
Platform Supported | PC |
Power Supply Wattage | 850 W |
Power Connector | 1x 16-pin |
Standard Memory | 24 GB |
Memory Technology | GDDR6X |
Bus Width | 384 bit |
API Supported | OpenGL 4.6 |
Number of Monitors Supported | 4 |
Maximum Digital Display Resolution | 7680 x 4320 |
CUDA Cores | 16384 |
Product Type | Graphic Card |
Manufacturer Part Number | TUFRTX4090O24GOGGAMING |
Manufacturer Website Address | http://www.asus.com/au |
Manufacturer | ASUS Computer International |
Product Model | TUF-RTX4090-O24G-OG-GAMING |
Product Name | TUF-RTX4090-O24G-OG-GAMING Graphic Card |
Brand Name | TUF |
Host Interface | PCI Express 4.0 |
HDMI | Yes |
DisplayPort | Yes |
Number of DisplayPort Outputs | 3 |
Number of HDMI Outputs | 2 |
Chipset Manufacturer | NVIDIA |
Chipset Model | RTX 4090 |
Chipset Line | GeForce |
Chipset Series | RTX |
GPU Boost Clock | 2.60 GHz |
Form Factor | Plug-in Card |
Length | 325.9 mm |
Cooler Type | Fan Cooler |
Height | 62.8 mm |
Width | 140.2 mm |
Card Height | Full-height |
Slot Space Required | Triple |
