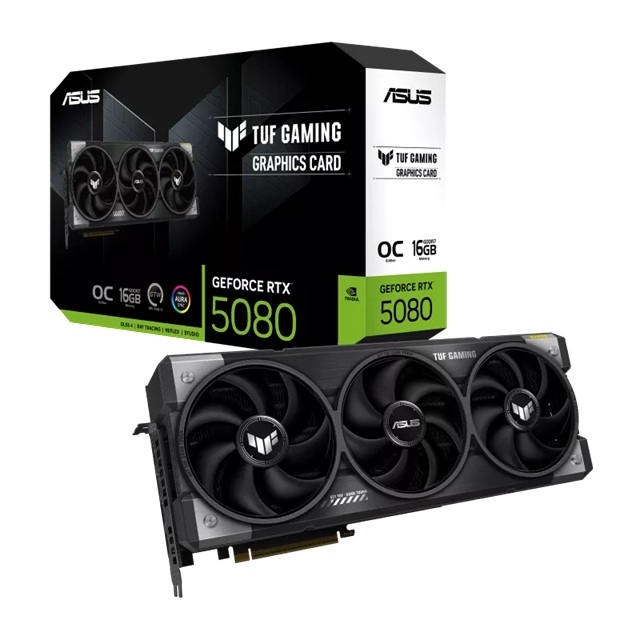

ASUS TUF Gaming GeForce RTX™ 5080 16GB GDDR7 OC Edition

SPECIFICATION
Model
TUF-RTX5080-O16G-GAMING

Graphic Engine
NVIDIA® GeForce RTX™ 5080

AI Performance
1801 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
16GB GDDR7

Engine Clock
OC mode: 2730 MHz
Default mode: 2700 MHz (Boost Clock)

CUDA Core
10752

Memory Speed
30 Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 2 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 3)​

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
348 x 146 x 72 mm
13.7 x 5.7 x 2.8 inch

Recommended PSU
850W

Power Connectors
1 x 16-pin

Slot
3.6 Slot

AURA SYNC
ARGB

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All
