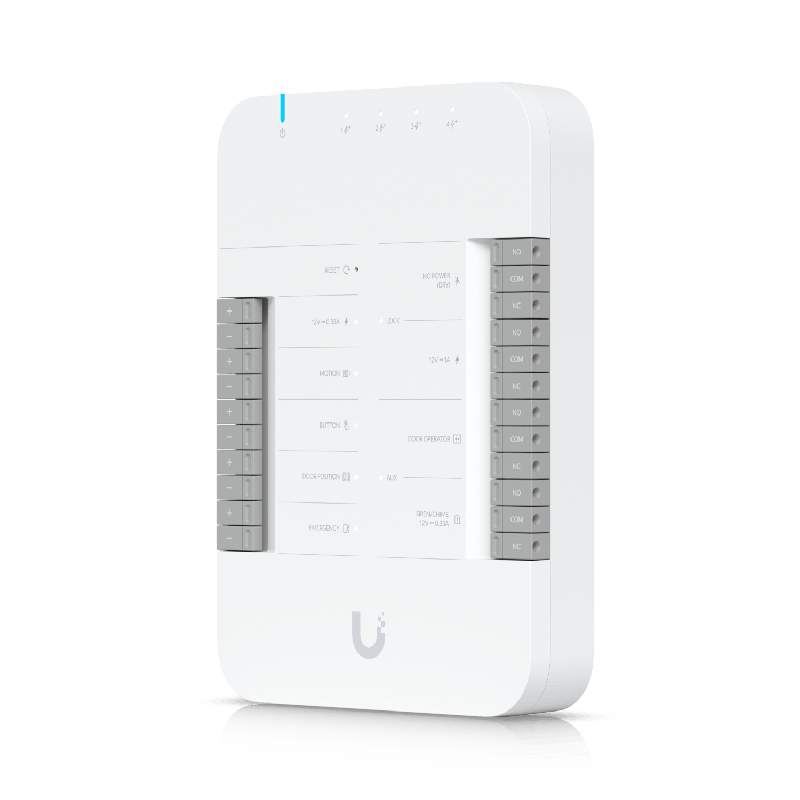

UA-HUB-DOOR – Full-Featured Access Control Hub for a Single Door
The UniFi Access Door Hub is a robust, DIN-rail-mountable access control hub designed to manage a single door with full entry and exit logic. It supports PoE++ input and provides four PoE outputs to power connected devices such as readers, locks, and sensors. With support for dry and powered relays, multiple input terminals, and centralized UniFi Access management, it’s ideal for professional-grade installations.
Built for indoor use, the UA-Hub-Door is UL 294 certified, NDAA compliant, and integrates seamlessly with UniFi Access Readers and software.
Key Features:

Controls 1 door with entry/exit logic
(1) PoE++ input, (4) PoE outputs (30W each, 45W max combined)
Dry and powered relay outputs (12V DC, 1A)
Inputs: door position, exit request, emergency
(5) GbE RJ45 ports
Max power consumption: 50W
DIN-rail mountable (included)
Indoor use only (0–40°C)
UL 294 and CAN/ULC-60839-11-1 certified
NDAA compliant
