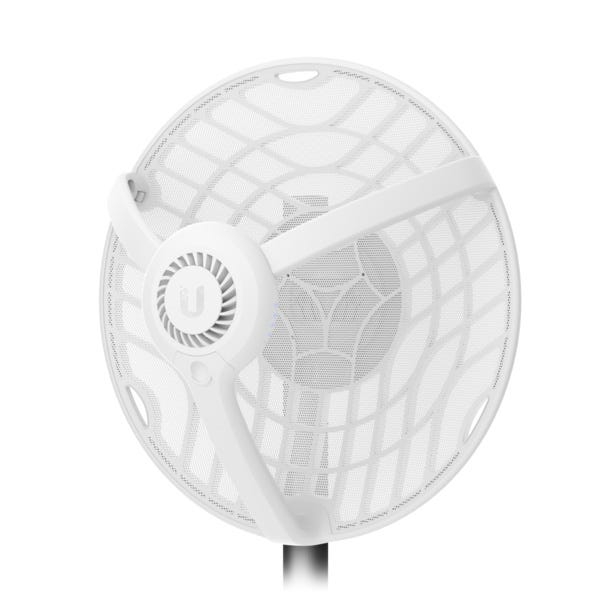

The Ubiquiti AF60-LR airFiber 60GHz Radio System is a high-performance point-to-point (PtP) radio designed for long-range, high-throughput wireless links. Utilising advanced Wave Technology, this system delivers true-duplex Gigabit performance with a maximum throughput rate of 1.95Gbps over distances exceeding 12km.

Engineered for low interference in the 60GHz spectrum, the AF60-LR features an integrated high-gain dish antenna, ensuring robust and stable connections. Its precision alignment mount simplifies installation, while the included snow cover enhances durability in various weather conditions.

For streamlined deployment and management, the AF60-LR includes a dedicated Bluetooth management radio, allowing for quick setup and configuration via the intuitive UISP application (web/mobile). Integration into existing networks is seamless with Ubiquiti's link planning platform and built-in GPS antenna for accurate tracking.

Ideal for establishing reliable backhaul connections or extending network infrastructure over significant distances, the AF60-LR system (sold in pairs to form a complete link) provides a powerful, low-latency solution for service providers and businesses requiring high-speed, interference-resistant wireless connectivity.

FEATURES

• Low-interference 60GHz spectrum
• Integrated GPS
• Link range: 12+km
• Precision alignment mount included
• Link planning support via UI Design Center
• Quick setup using the UISP App via Bluetooth
• Integrated high-gain dish antenna
• True-duplex Gigabit performance
• Automatic channel width switching (2160MHz and 1080MHz)
• Includes snow cover

SPECIFICATIONS

• Dimensions: ˜413 x 360mm
• Weight: 1.5kg (without mount), 2.7kg (with mount)
• Enclosure Materials: Aluminium, UV stabilised polycarbonate
• Mount Material: Galvanised steel
• Mounting: Precision alignment kit (included), Pole compatibility: ˜25.4 to 76.2mm
• Wind Loading: 420N at 200km/h
• Processor: Quad-Core ARM Cortex A7
• Memory: 256MB DDR3
• Networking Interface: (1) GbE RJ45 port
• Max. Power Consumption: 22W
• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or Passive PoE 2-pairs (4, 5+; 7, 8-) for 44 54V DC only
• Power Supply: 48V DC, 0.65A gigabit PoE adapter (included)
• Supported Voltage Range: 44 54V DC, 22 27V DC
• ESD/EMP Protection: Air/contact: ± 24kV
• Operating Temperature: -40 to 60°C
• Operating Humidity: 5 to 95% noncondensing
• Certifications: FCC, IC, CE
• Operating Mode: PtP only
• Max. Throughput: 1.95Gbps
• Encryption: WPA2-PSK (AES)
• Operating Frequency: 57 71GHz (depends on regulatory region)
• Channel Bandwidth: 2160, 1080MHz
• Polarisation: Vertically linear
• Beamwidth: Azimuth: 3dB 1.6°, Elevation: 3dB 1.6°
• LEDs: Power, Ethernet, GPS, 60G
• Software Management: Bluetooth management for easy setup over UISP app, WEB UI
• Minimum Software Requirements: Any modern web browser/iOS™ or Android™ based smartphone

WARRANTY

1-Year Limited Warranty
