MECHANICAL
Dimensions	Ø160 x 32.65 mm (Ø6.3 x 1.3")
Weight	Without Mount: 300 g (10.6 oz) With Mount: 315 g (11.1 oz)
Enclosure Characteristics	Polycarbonate 110 and ADC12 Die Casting
Mounting Characteristics	Polycarbonate, SGCC Steel
HARDWARE
Processor Specs	880 MHz MIPS 1004 KEc
Memory Information	256 MB
Management Interface	Ethernet In-Band
Networking Interface	(1) 10/100/1000 Mbps Ethernet RJ45
Buttons	Factory Reset
LEDs	White/Blue
Power Method	802.3af PoE, Passive PoE (48V)
Power Supply	802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
Supported Voltage Range	44 to 57VDC
Max. Power Consumption	12W
Max. TX Power 2.4GHz 5GHz	23 dBm 23 dBm
MIMO 2.4GHz 5GHz	2 x 2 2 x 2
Throughput Speeds 2.4GHz 5GHz	300 Mbps 1201 Mbps
Antenna Gain 2.4GHz 5GHz	2.8 dBi 3 dBi
Operating Temperature	-30 to 60° C (-22 to 140° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC
SOFTWARE
Wi-Fi Standards	802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Trafc Isolation	Supported
Concurrent Clients	300+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)	6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11ac (Wi-Fi 5)	6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (Wi-Fi 6)	6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)

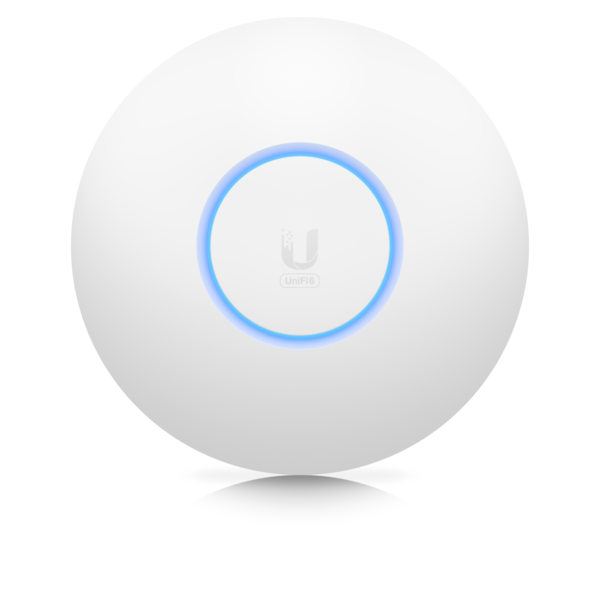

Ubiquiti Unifi UAP-U6-Lite - Dual Band Ceiling Mounted Access Point 802.11ax (Wi-Fi 6) Dual Radio Access Point UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories. FEATURES 2x2 high-efficiency Wi-Fi 6 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included) Compatible with UAP-nanoHD covers and recessed mounting bracket Managed by UniFi Network Controller version: 5.14.3 or higher WARRANTY 1-year manufacturer's warranty. WHY 4CABLING? Australia’s leading importer & wholesaler of 19” server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
