MECHANICAL
Dimensions	Ø220 x 48 mm (Ø8.66 x 1.89")
Weight	Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb)
Enclosure Material	Plastic
Mounting Material	SGCC Steel
Weatherproofing	IP54
HARDWARE
Processor Specs	Dual-Core® Cortex® A53 at 1.35 GHz
Memory Information	512 MB
Management Interface	Ethernet
Networking Interface	(1) 1 Gbps Ethernet RJ45
Button	Factory Reset
LEDs	RGB
Power Method	PoE+, Passive PoE (48V)
Power Supply	UniFi PoE Switch 48V, 0.5A PoE Adapter (Not Included)
Supported Voltage Range	44 to 57VDC
Max. Power Consumption	16.5W
Max. TX Power 2.4 GHz 5 GHz	26 dBm 26 dBm
MIMO 2.4 GHz 5 GHz	4 x 4 4 x 4
Throughput Speeds 2.4 GHz 5 GHz	600 Mbps 2400 Mbps
Antenna Gain 2.4 GHz 5 GHz	4 dBi 5.5 dBi
Mounting	Wall/Ceiling (Kits Included)
Operating Temperature	-30 to 60° C (-22 to 140° F)
Operating Humidity	5 - 95% Noncondensing
Certifications	CE, FCC, IC
SOFTWARE
Wi-Fi Standards	802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions
BSSID	8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
Concurrent Clients	300+
SUPPORTED DATA RATES (MBPS)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (Wi-Fi 5)	6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)	7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

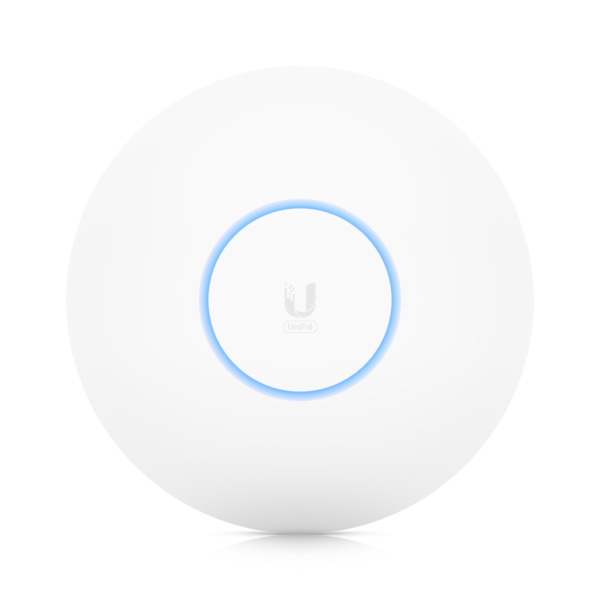

Ubiquiti Unifi UAP-U6-LR - WiFi 6 Long-Range - Access Point U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments. It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated). FEATURES 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance) Four-stream high-efficiency Wi-Fi 6 technology 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps Powered with UniFi PoE Switch or  48V, 0.5A Adapter/Injector  (Not included) Managed by UniFi Network Controller version: 6.0.34  or higher WARRANTY 1-year manufacturer's warranty. WHY 4CABLING? Australia s leading importer & wholesaler of 19  server racks, copper, ethernet cable, fibre optic leads & structured networking products ISO 9001, NSW Govt. & GITC (QLD Govt.) approved supplier Secure online shopping 24/7 A loyal customer base of 100k+ who trust us for their data & electrical needs Over 3000 quality products in stock ready to go All products are approved as per local Australian standards Warranty & peace of mind return policy Lightning fast delivery nationwide Expert advice Proudly 100% Australian owned & operated
