Ubiquiti 5ghz Nanostation M5 Mimo Airmax - Point-to-multipoint(ptmp) Application Nsm5
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX® CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Powerful airOS® Features
Ubiquiti’s versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

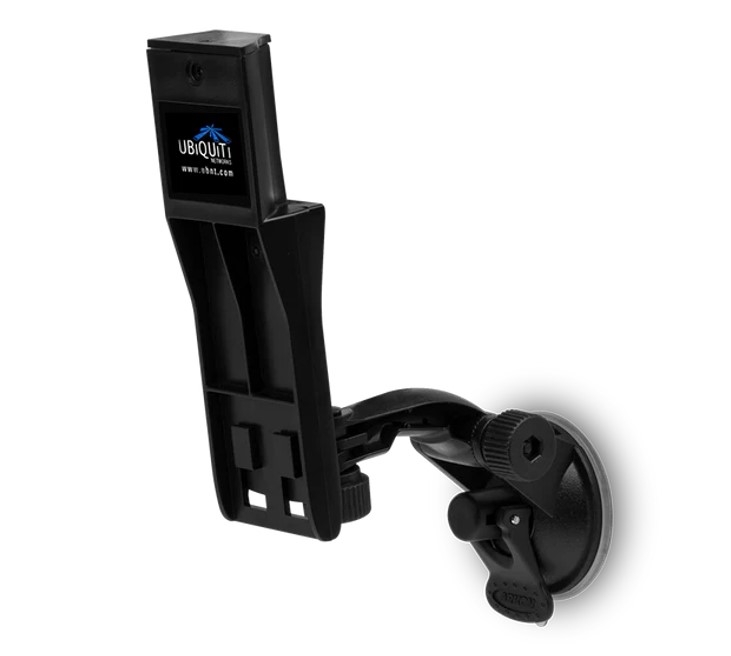

Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
Model Comparison
 locoM9 |  NSM2 |  locoM2 |  NSM3 | |
|---|---|---|---|---|
| Frequency | 900 MHz | 2.4 GHz | 2.4 GHz | 3 GHz |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 150+ Mbps |
| Range | 10+ km | 13+ km | 5+ km | 15+ km |
 NSM365 |  NSM5 |  locoM5 | ||
|---|---|---|---|---|
| Frequency | 3.65 GHz | 5 GHz | 5 GHz | |
| Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | |
| Range | 15+ km | 15+ km | 10+ km |
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.
POE-24-12W included
