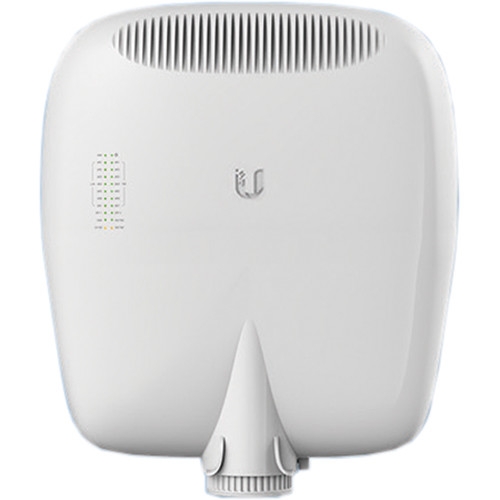

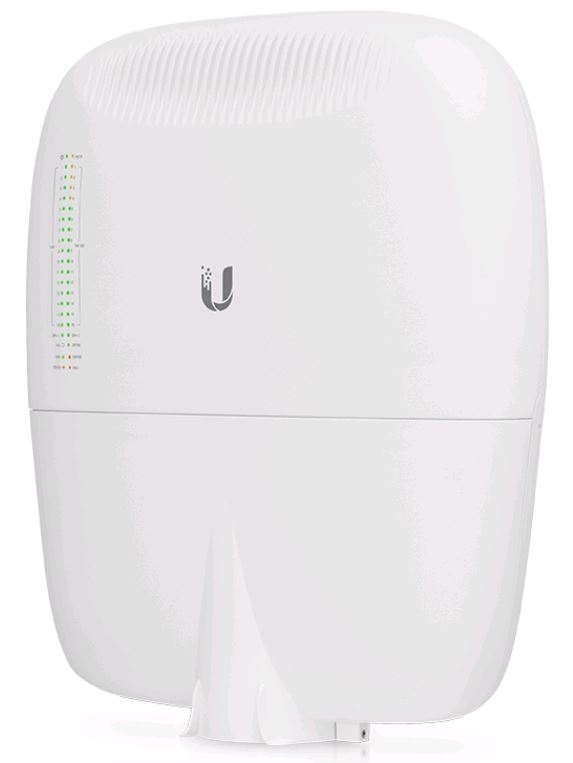

Ubiquiti Edgepoint Wisp Switch 16 Port Ep-s16
Breakthrough in Tower Deployment
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Purpose-Built for WISP Control
The first application-specific designed WISP control point, the EdgePoint combines the advanced routing capabilities of EdgeMAX® with fiber backhaul and versatile powering capabilities.
All-in-One Design
A single, compact controller eliminates clutter, expensive cabinets, extraneous installations, and excessive maintenance.
Advanced Routing Applications
Powerful routing features – such as link balancing – provide redundancy and increased performance for outdoor wireless links.
Model Comparison
 EP-R6 |  EP-R8 |  EP-S16 | |
|---|---|---|---|
| Function | Router | Router | Switch |
| Gigabit RJ45 Ports | 5 | 6+2* | 16 |
| SFP Ports | 1 | 2* | N/A |
| SFP+ Ports | N/A | N/A | 2 |
| Power Input | (1) DC Terminal Block or (1) 24V, 4-Pair | (1) DC Terminal Block or (2) 54V, 4-Pair | (1) DC Terminal Block or (2) 54V, 4-Pair |
| PoE Output | (5) 24V, 2-Pair | (2) 54/24V, 4-Pair (5) 24V, 2-Pair | (4) 54/24V, 4-Pair (12) 802.3af/at or 24V, 2-Pair |

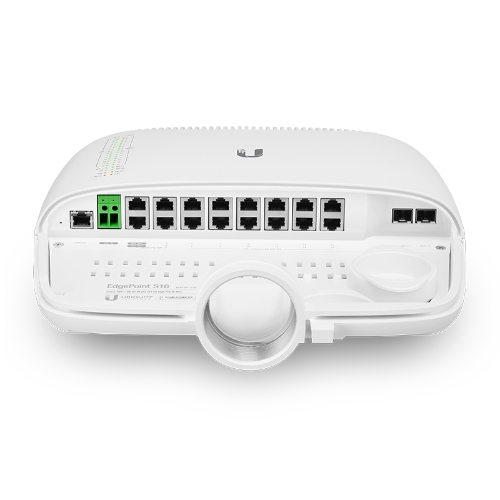

Bottom Panel
•Power Options - 54VDC, 6A Terminal Block or Dual PoE Input
•(1) Console Port
•Data Ports - (16) RJ45 Ports and (2) SFP+ Ports
Sixteen RJ45 ports support PoE:
•PoE Input or Output. (2) Ports with Two Options: 54V, 1.5A Passive PoE Input or 54 or 24V, 1.4A Passive PoE Output
•PoE Output - (2) 54 or 24V, 1.4A Passive PoE Output Ports and (12) PoE+ or 24V, 0.7A Passive PoE Output Ports
