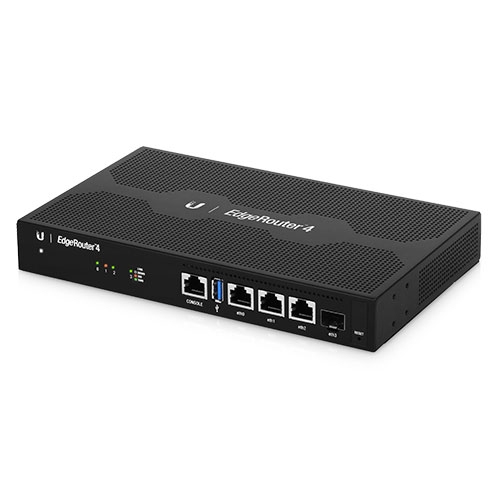

Ubiquiti Edgerouter 4 With 1ghz Cpu (4 Cores) 1gb Ram And 3 X Gigabit Ethernet Ports Plus 1 X Sfp
SKU
258215
Brand
MPN
ER-4
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$379.00
Buy Now And Earn 379 Reward Points!
QUICK OVERVIEW
Port ER-4
Price/Performance Breakthrough
The EdgeRouter™ 4 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 4 Gbps.
Versatile Design
The EdgeRouter 4 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 4 is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
 ER-4 |  ERLite-3 |  ERPro-8 | |
|---|---|---|---|
| Performance | 3.4 million pps | 1 million pps | 2 million+ pps |
| CPU count | 4 | 2 | 2 |
| Core Frequency | 1 GHz | 500 MHz | 1 GHz |
Ubiquiti Networks introduces the EdgeRouter™ 4, the next generation of router for the EdgeMAX®platform.
EdgeRouters combine carrierclass reliability with enterprise level features in a compact and affordable unit.The EdgeRouter 4 offers Gigabit Ethernet ports and an SFP port for a fiber link. The EdgeRouter 4 is capable of routing up to 3.4 million packets per second and has a line rate of 4 Gbps. Powered by a proprietary and intuitive graphical interface, EdgeOS®, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands. Even greater convenience and flexibility is provided by the UNMS app, which makes it possible to manage the EdgeRouter remotely from your mobile device.
Model: ER-4
• (3) Gigabit RJ45 routing ports
• (1) Gigabit SFP port
• 3.4 million packets per second for
64-byte packets
• 4 Gbps for packets 128 bytes or
larger in size
• Silent, fanless operation
• Compact, durable metal case
Dimensions 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in)
Weight 795 g (1.75 lb)
Max. Power Consumption 13W
Power Internal AC Power Adapter
Power Input 110 - 240VAC
Button Reset
LEDs
Data Ports
SFP Data Port
Speed/Link/Activity
Link/Activity
Networking Interfaces
Management
Networking
(1) RJ45 Serial Port
(4) Ethernet Ports (Default eth0)
(3) 10/100/1000 RJ45 Ports
(1) 1 Gbps SFP Port
Processor 4-Core 1 GHz, MIPS64
System Memory 1 GB DDR3 RAM
On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
Rack-Mountable Yes
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
