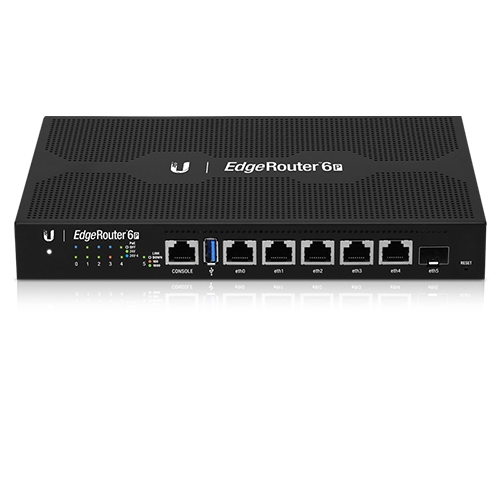

Ubiquiti Edgerouter 6-port With Poe Er-6p
SKU
260775
Brand
MPN
ER-6P
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $458.00 Regular Price $527.00
Buy Now And Earn 458 Reward Points!
Price/Performance Breakthrough
The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6 Gbps.
Versatile Design
The EdgeRouter 6P can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
 ER-4 |  ER-6P | |
|---|---|---|
| Performance | 3.4 million pps | 3.4 million pps |
| CPU count | 4 | 4 |
| Core Frequency | 1 GHz | 1 GHz |
| PoE Support | - | 5x 24V passive 2-pair/4-pair PoE |
The all-new EdgeRouter 6 brings “high-performance at disruptive pricing” to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 6 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks.
New Design
(5) 10/100/1000 Mbps Ethernet Ports and (1) SFP Port
24V PoE Output
4-Core 1GHz MIPS64 Processor
External 24V 2.5A power supply
Fanless
Desk, Wall, and RackMount options*
Dimensions 11.25" x 2.5" x 9.75"
Weight 3.45 lbs
Enclosure Characteristics Metal Housing with Black Powder Coat
HARDWARE
Processor 4-Core 1GHz MIPS64
System Memory 1GB DDR3
On-Board Flash Storage 4GB eMMC, 8MB SPI NOR
Max. Power Consumption 16W
Supported Voltage Range 24V: 27V~21V
Networking Interfaces (1) RJ45 Serial Port
(5) 10/100/1000 Ethernet Router Ports
(1) 1Gbps SFP Ethernet Router Port
(1) USB 3.0 reserved for future
PoE Interfaces (5) 24V Passive PoE ports (2-pair and 4-pair)
Mangement Interface (1) RJ45 Serial Port
(6) Ethernet Ports, (default eth0)
New Design
(5) 10/100/1000 Mbps Ethernet Ports and (1) SFP Port
24V PoE Output
4-Core 1GHz MIPS64 Processor
External 24V 2.5A power supply
Fanless
Desk, Wall, and RackMount options*
Dimensions 11.25" x 2.5" x 9.75"
Weight 3.45 lbs
Enclosure Characteristics Metal Housing with Black Powder Coat
HARDWARE
Processor 4-Core 1GHz MIPS64
System Memory 1GB DDR3
On-Board Flash Storage 4GB eMMC, 8MB SPI NOR
Max. Power Consumption 16W
Supported Voltage Range 24V: 27V~21V
Networking Interfaces (1) RJ45 Serial Port
(5) 10/100/1000 Ethernet Router Ports
(1) 1Gbps SFP Ethernet Router Port
(1) USB 3.0 reserved for future
PoE Interfaces (5) 24V Passive PoE ports (2-pair and 4-pair)
Mangement Interface (1) RJ45 Serial Port
(6) Ethernet Ports, (default eth0)
